In the surveying industry, precision and efficiency are crucial when it comes to adhering to plans and budgets. For this reason, advancements in technology that can improve field-to-office workflows are constantly being developed. One such advancement is laser scanners, which have emerged as indispensable tools, able to offer unprecedented levels of accuracy and speed. These devices, now central to modern surveying, enable the creation of detailed and comprehensive 3D representations of physical spaces. This capability enhances the quality of survey data while also significantly reducing the time required to gather and process this information.
Laser scanning technology can be used for a variety of projects that require precise spatial data. Some examples include creating detailed maps of construction sites and documenting historical landmarks. Today’s laser scanning technology allows surveyors to capture millions of data points in a fraction of the time it would take using traditional methods. These data points are used to create a point cloud, which as we discuss in detail below, forms the basis of 3D representation.
The process of laser scanning involves capturing a vast number of data points, which are then used to create a point cloud. This point cloud forms the foundation of a detailed 3D representation of the scanned environment, capturing the exact spatial coordinates of every point within an area.
Point cloud data refers to the collection of data points that represent the surface of an object or space in three dimensions. Each point in a point cloud has an X, Y and Z coordinate, which corresponds to its real location. These points are collected using laser scanners or photogrammetry (a technique that uses photographs to create 3D models).

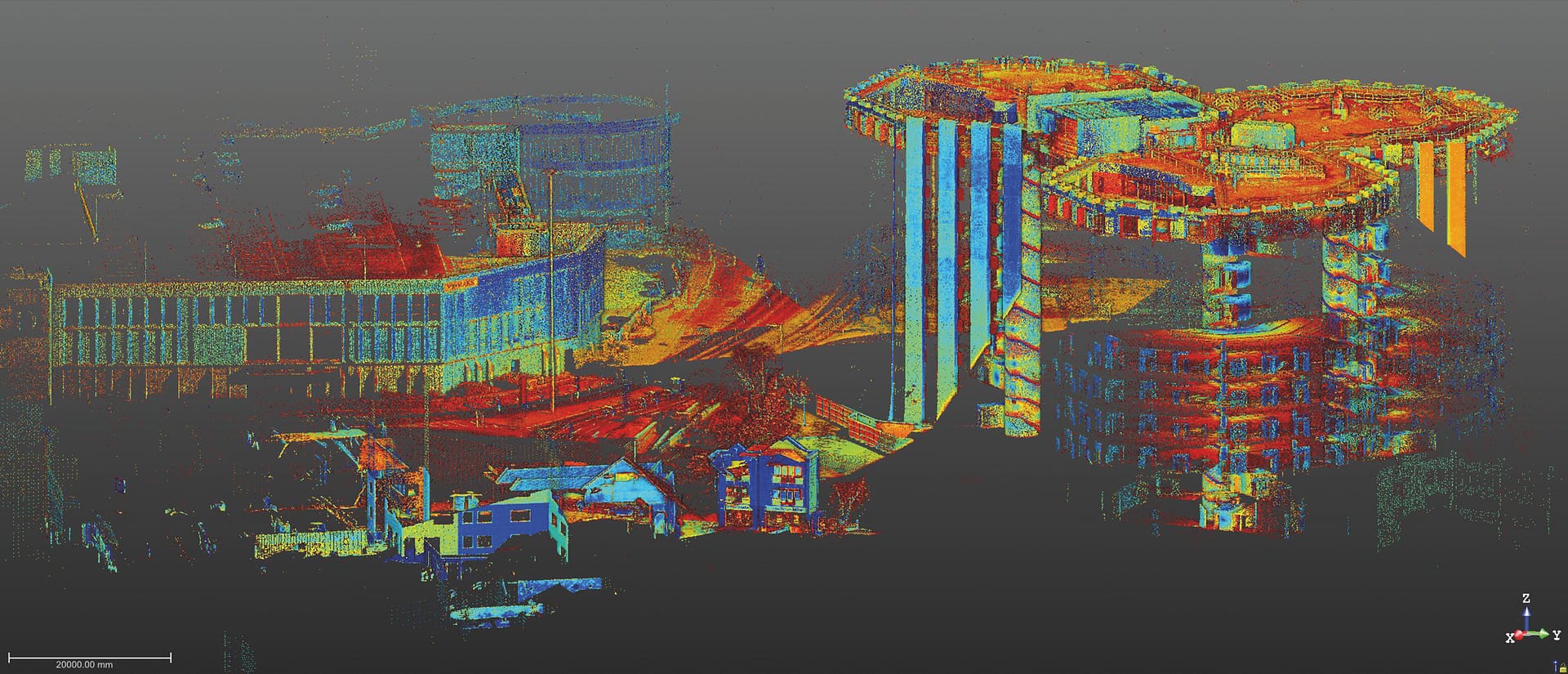

The resulting point cloud is a digital representation of the scanned environment, with each point corresponding to a specific location. The density of the points in a cloud can vary, depending on the scanning resolution and the level of detail required. High-density point clouds offer a more detailed and accurate representation. However, the drawback is that they also require more processing power and storage capacity.
Creating a point cloud requires specialised equipment, including laser scanners and cameras for photogrammetry. Laser scanners emit laser beams that bounce off surfaces and return to the scanner, measuring the time it takes for the light to return. This data is then used to calculate the distance to each point, allowing the scanner to map out the environment in 3D.

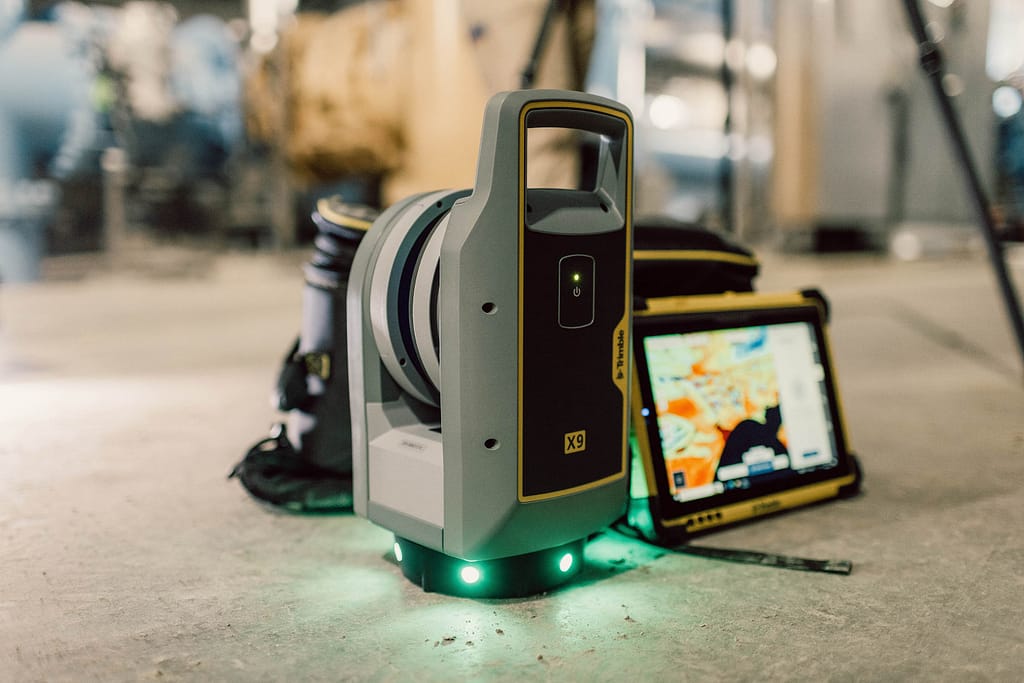

There are several types of laser scanners. Terrestrial laser scanners are typically used for ground-based surveys. Aerial laser scanners, meanwhile, are often mounted on drones or aircraft for large-scale mapping projects.
Photogrammetry, on the other hand, involves taking multiple overlapping photographs of an area from different angles. These images are then processed using specialised software to create a 3D model. This can be converted into a point cloud.
Creating point clouds also involves using software to process the data. This software handles massive amounts of data generated during scanning and converts it into a 3D representation.
Point clouds capture a range of measurements, including the spatial coordinates of each point, and the intensity of the reflected laser beam. The spatial coordinates (X, Y and Z) are the most crucial aspect of a point cloud. These define the exact location of each point in the 3D space.

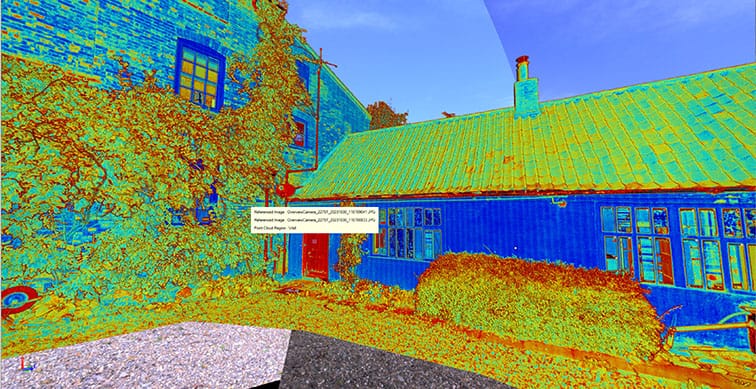

The intensity measurement provides information about the reflectivity of the surface. This can be useful for distinguishing between different materials or surfaces in the scanned environment. For example, a highly reflective surface, like metal, will bring back a stronger signal than a less reflective surface, like wood. Colour images can be taken and added onto the point cloud to create a more photo-realistic representation.
The time required to create a point cloud depends on the size of the area being scanned, the resolution of the scan and the type of equipment used. For smaller areas, such as a small room, a point cloud can be generated in several minutes. Larger areas requiring multiple setups, such as construction sites, may take hours to scan.
Once the scanning is complete, the raw data is processed. This step can also vary in time taken, depending on the complexity of the data and the processing power of the software being used. Generally speaking, the whole process, from scanning to final point cloud generation, can take anywhere from a few hours to a few days.
Point cloud data is extremely versatile and can be used in a wide range of applications across various industries. These applications include creating detailed 3D models, carrying out quality control and, in some cases, even developing virtual reality environments.
Point cloud data is used by surveyors, forensic teams, architects, engineers and construction workers, among other professions.
For surveyors, point clouds can be used to create detailed maps and models of the landscape, which can be used for planning, asset collection and measurement. Architects and engineers also use point clouds to create accurate 3D models of buildings and structures for design purposes.
In construction, point cloud data is used to track the progress of a project and ensure that building adheres to the plan. The data can also be used to spot any discrepancies between the design and the actual construction. This often means corrections can be made before they become serious issues.

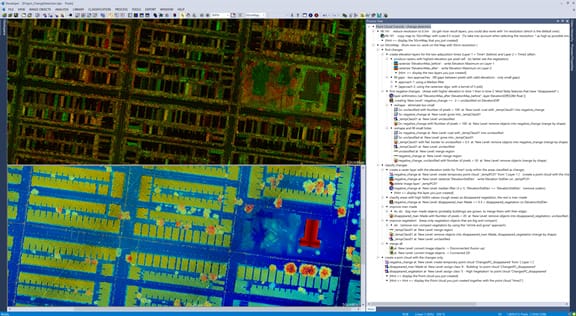

Point cloud data can be presented in variable ways. The most common way to present point cloud data is as a 3D model, which can be viewed on a computer. These models provide a highly detailed and accurate representation of the scanned environment. The software also allows users to zoom in on certain areas and look at the data from different angles.
Point clouds can also be converted into mesh models, which are used in applications such as 3D printing and computer-aided design (CAD). In these cases, the point cloud data is used to create a surface representation of the object, which can be edited if required.
Another way to present point cloud data is through Building Information Modelling (BIM), a digital representation of a building’s physical and functional characteristics. BIM models are used by architects, engineers and construction professionals to design, build and manage buildings and other infrastructure.
Point cloud data can be used for numerous applications, many of which have become indispensable in modern surveying, construction and engineering. One of the most common uses of point cloud data is in 3D modelling and BIM, where it provides the basis for creating accurate and detailed models of buildings, structures and landscapes.
In addition to 3D modelling, point cloud data is also used for reverse engineering. Here, it provides detailed measurements needed to recreate or enhance existing products. This is particularly useful in manufacturing, where precise measurements are crucial to ensuring that parts fit together and operate as intended.
Point cloud data is also used in quality control, where it provides the data required to ensure products meet the required specifications. By comparing point cloud data to the original design, engineers can identify any inconsistencies and make adjustments before the final product is manufactured.
In surveying and construction, point cloud data is used to track a project’s progress and identify potential issues, such as uneven levels or misalignments. As a result, edits can be made before they become expensive problems to fix or delay a project’s completion.
Finally, point cloud data is used in the development of virtual reality (VR) and augmented reality (AR) environments. In these applications, point clouds provide the detailed spatial data needed to create realistic and immersive digital environments. This is an exciting, upcoming space, where the technology is being used for interactive gaming, entertainment and even education.
The accuracy of point clouds is one of their most significant advantages, particularly in industries where precision is critical, such as construction and surveying. Modern laser scanners are capable of capturing millions of data points per second, with an accuracy of up to a few millimetres. Nonetheless, the accuracy of a point cloud is dependent on the quality of the equipment used, the scanning resolution and the conditions under which the scan was conducted.
Laser scanning and point cloud technology have revolutionised the surveying industry, providing a combination of accuracy and efficiency that was previously unachievable. The ability to create highly detailed 3D representations of physical spaces has transformed surveying, construction, engineering and VR/AR.
The applications of point clouds are vast, from creating intricate 3D models for BIM to conducting thorough quality control in manufacturing. The precision of these data sets ensures that every detail is captured, allowing for more accurate project planning, design and execution. For companies like KOREC Group, which specialise in providing cutting-edge surveying equipment, these technologies represent the future of the industry.
