Access the latest laser scanning technology at competitive prices. Choose between the Trimble X9 Core LT, X9 Core, or X9 Premium. They all feature the same outstanding X9 hardware and are available with flexible purchasing options – perpetual or subscription – tailored to your current and future needs as your business grows.

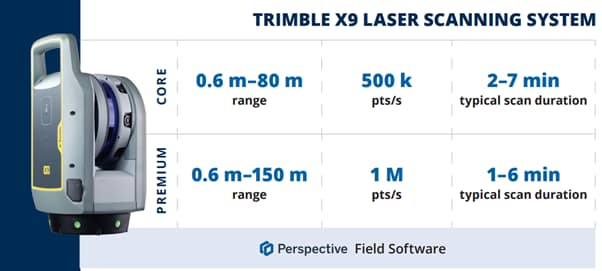

Choosing the Core LT, Core or Premium?
New to the range is the Trimble X9 Core LT which provides a perfect entry point for new users, lowering the barrier for anyone wishing to add scanning to their business. The Core LT version is fully upgradeable to the Core or Premium X9.
The Trimble X9 Core offers a competitively priced, user-friendly solution for both beginners and seasoned professionals, bringing a number of features greatly improved on the original Trimble entry level X7 scanner. Expect increased angular accuracy, increased imagery quality, reduced range noise, high sensitivity data capture for all scan modes, reduced frequency of full calibrations and allows for atmospheric correction for temperature and pressure.
The Trimble X9 Premium delivers faster, farther, and more precise measurements than the Core version—capturing extensive areas in a single setup with zero detail overlooked and is ideal for surveyors tackling complex and demanding projects.
Download sample data – Simply fill in this form to request your sample data.
KOREC will email you a link to download.

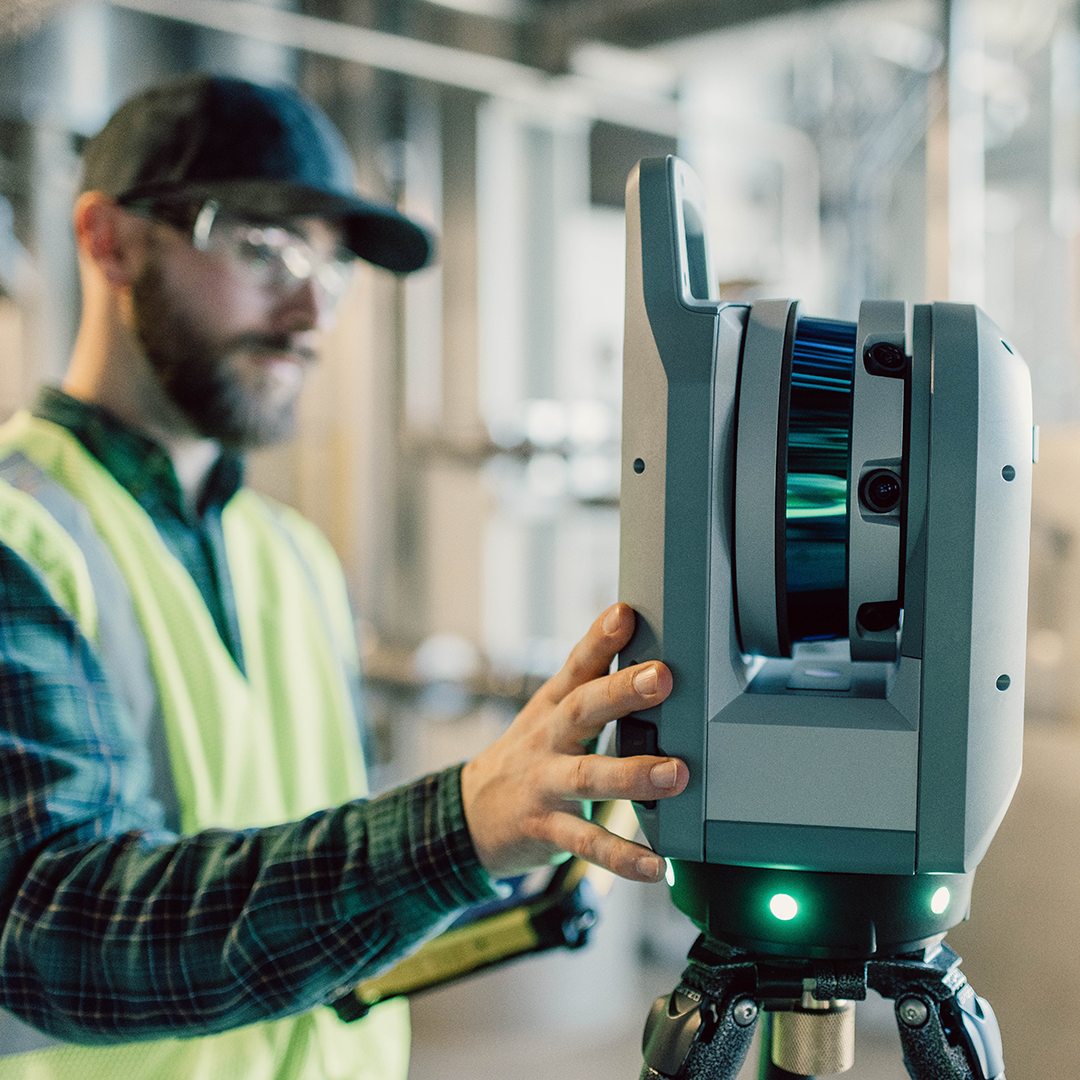

Trusted technological innovations
Field-proven automatic calibration and self-levelling ensure easy setup and accurate data to guarantee consistent results, plus a laser pointer for georeferencing.

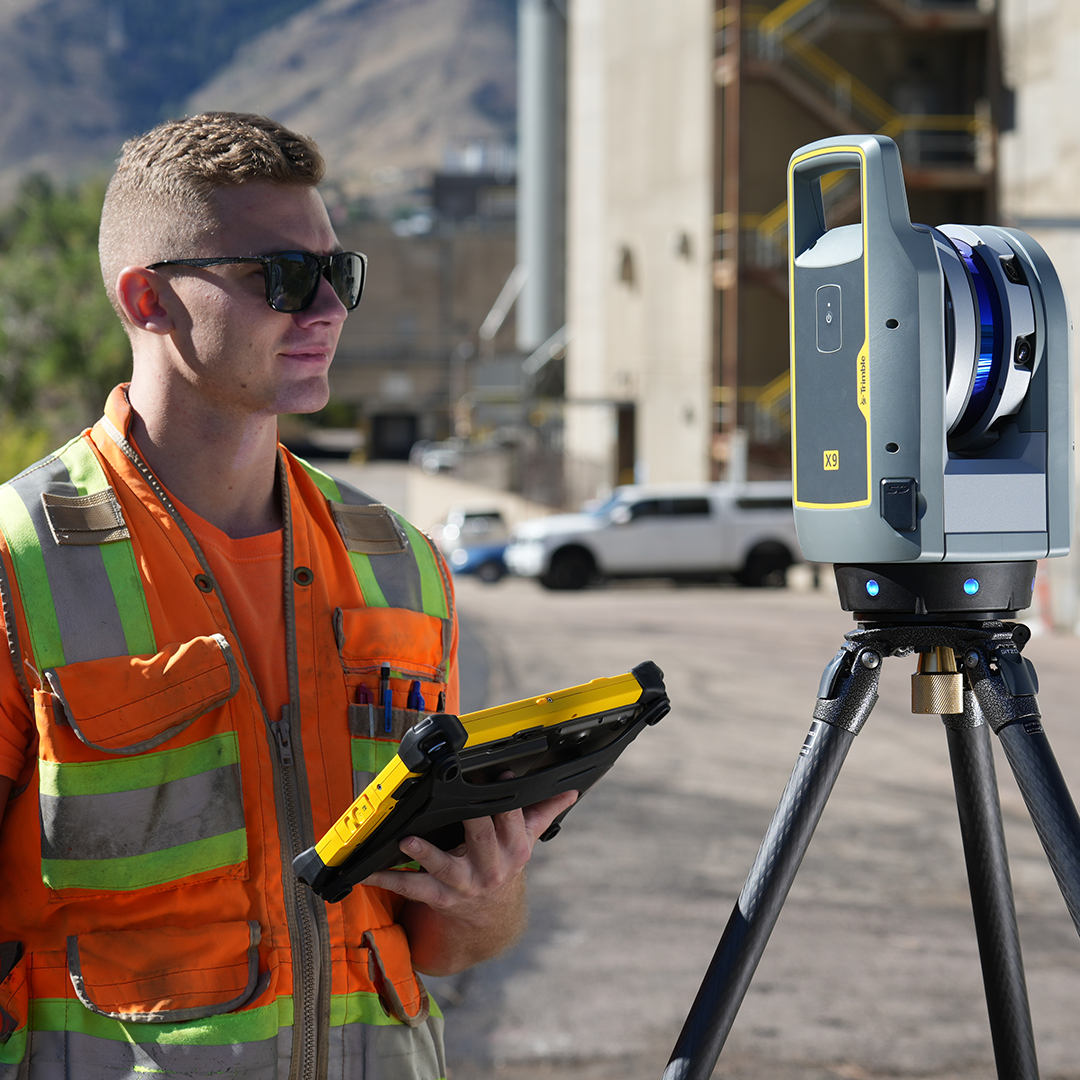

Flexible performance and workflows
The speed, range, accuracy, sensitivity and environmental capability to scan with confidence in challenging conditions using tablet, phone or hands-free workflows.

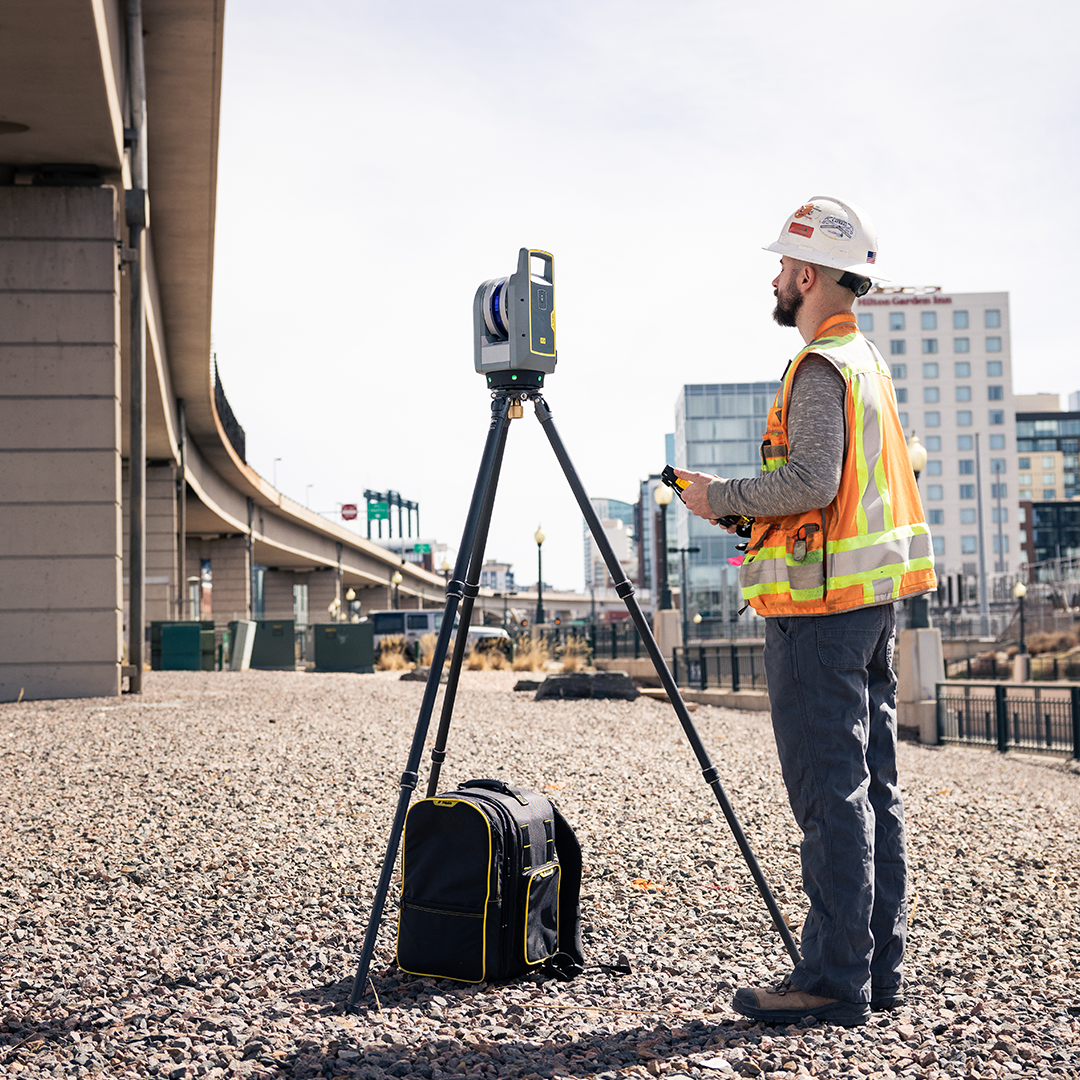

Intuitive and powerful
Trimble Perspective software provides unparalleled clarity in the field with automatic scan registration and full 3D visibility to validate data in real time.

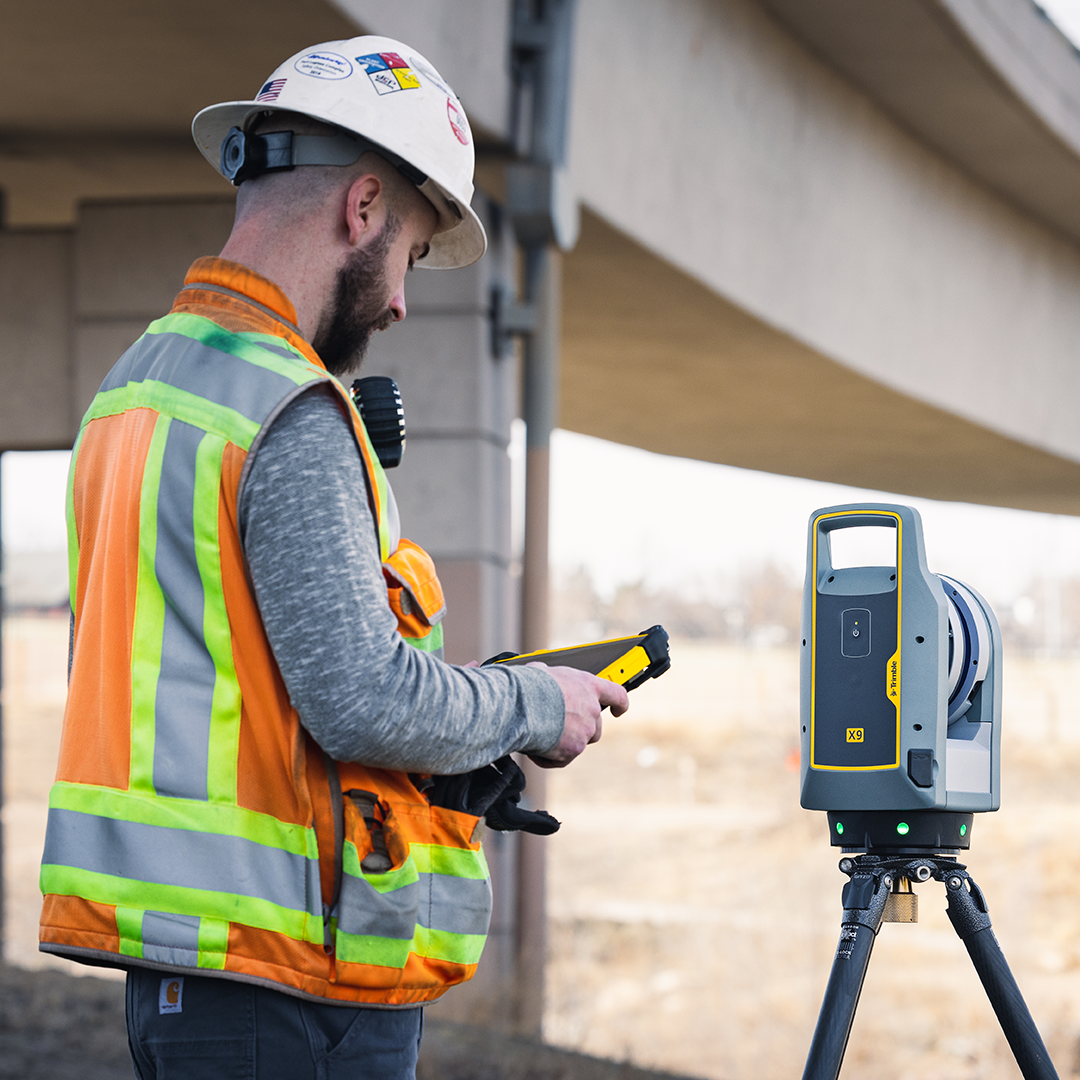

Complete scanning solution
With Trimble Business Center or Trimble RealWorks™ software, leverage advanced application-specific tools for registration, scan analysis and design to enhance final deliverables.

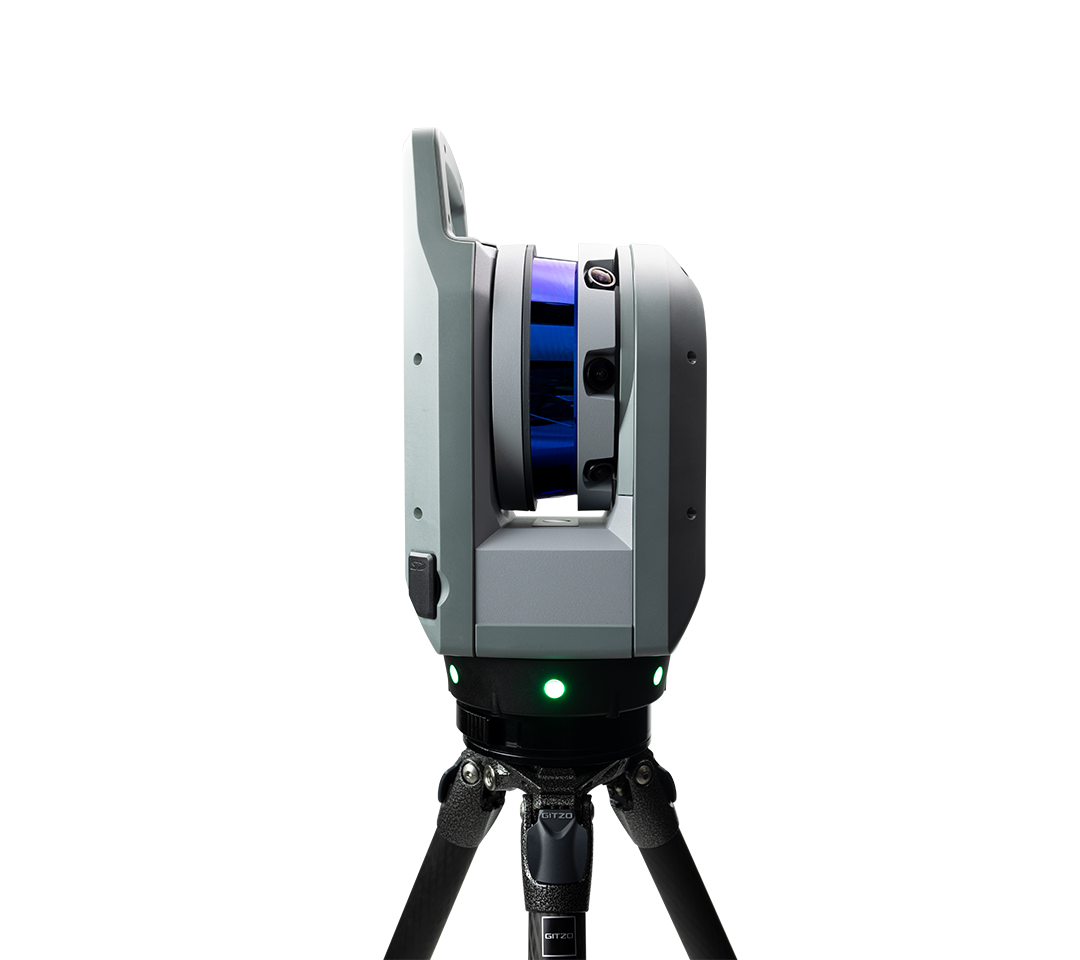

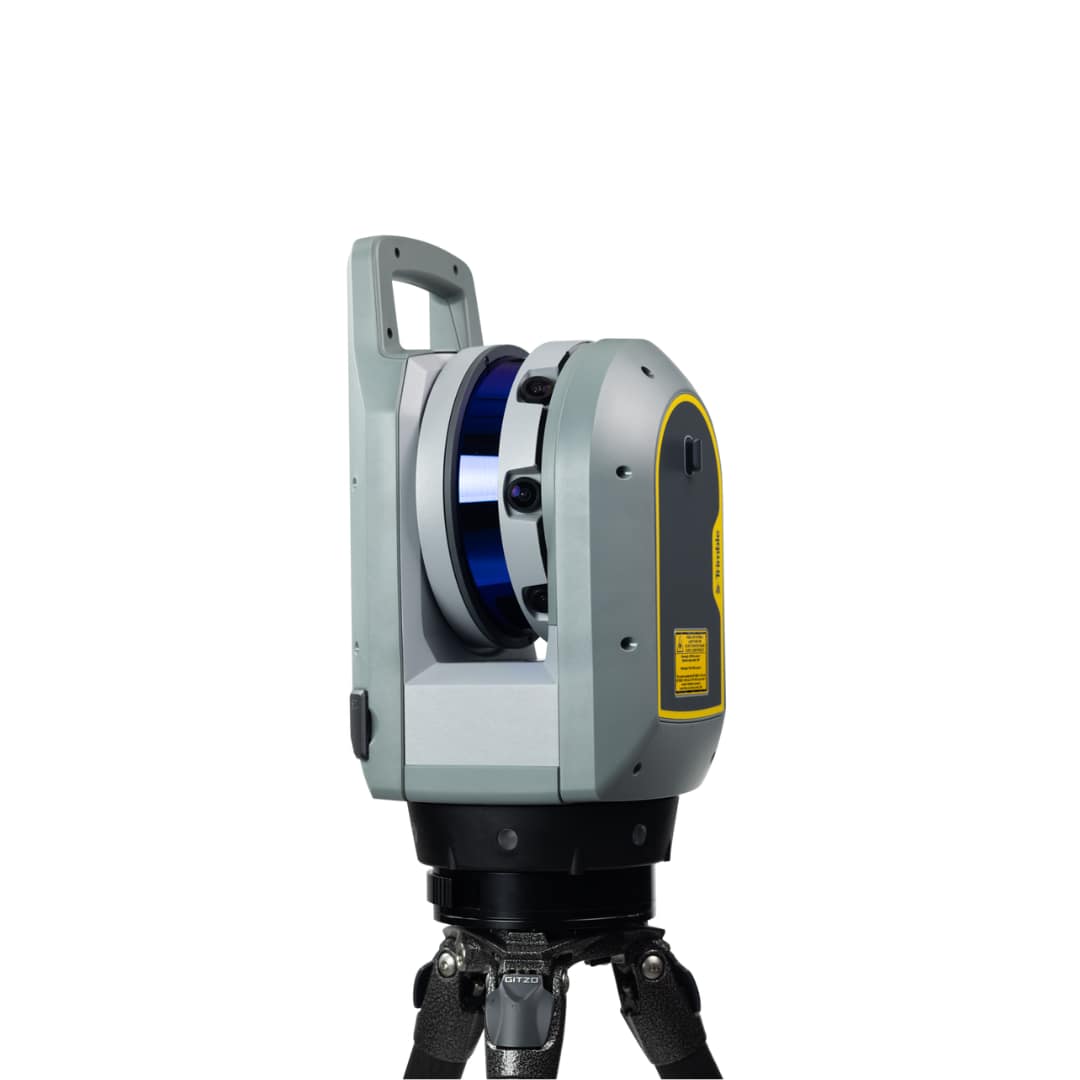

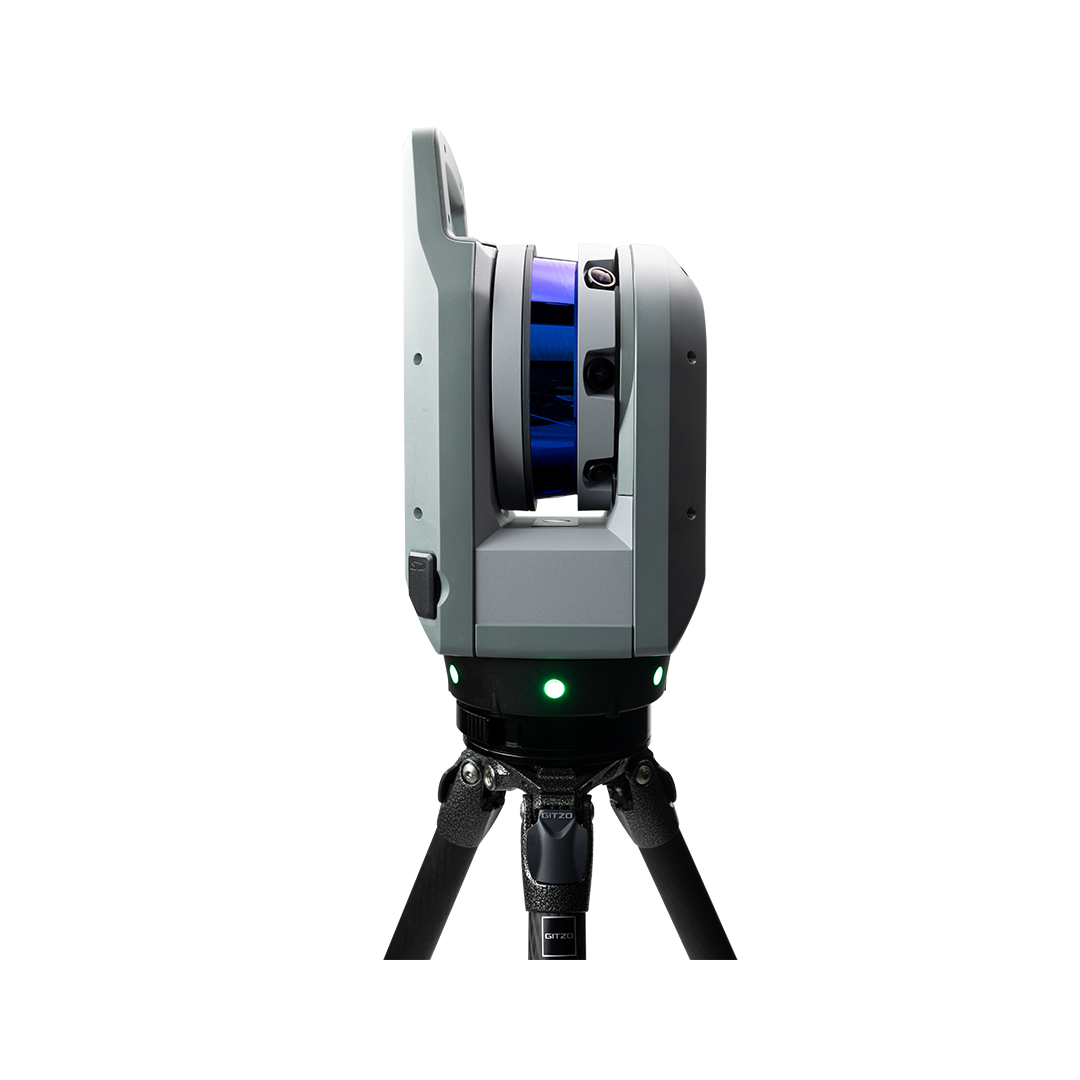

Versatile advanced 3D laser scanning system you can depend on, built on proven Trimble laser scanning technologies.
• Scan speed – up to 1000 kHz
- Scan range – 0.6 m to 150 m
- Scan times – < 1 min to 6 min
- Auto-calibration – no targets or user interaction for accuracy on every scan
- Self-levelling – <3″ with tilt compensation range of ±10°
- Environmental protection – IP55
- Operating temperature – -20°C to +50°C (–4°F to 122°F)
- Ease of use – Intuitive Trimble Perspective workflows
- Licensing plans – Adjust your license to your needs
| Terrestrial Scanning Systems | Scan Speed | Scan Range | Range Noise | 3D Point Accuracy | Scan Time | Imaging | Image Acquisition Time | Interface | Dual Axis Compensator | Ingress Protection | Laser Class |
| Trimble X7 | Up to 500 kHz | 0.6 m–80 m | < 2.5 mm @ 30 m | 3.5 mm @20 m | 2-7 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy <3″, Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X9 Core LT | Up to 500 kHz | 0.6 m–40 m | < 1.5 mm @ 30 m on 80% albedo | 3.0 mm @20 m | 2-7 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy <3″, Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X9 Core | Up to 500 kHz | 0.6 m–80 m | < 1.5 mm @ 30 m on 80% albedo | 3.0 mm @20 m | 2-7 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy <3″, Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X9 Premium | Up to 1000 kHz | 0.6 m–150 m | < 1.5 mm @ 30 m on 80% albedo | 3.0 mm @20 m | 1-6 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6 min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy <3″, Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X12 | Up to 2,187 kHz | 0.3 m–250 m; 365 m (Ambiguity Interval) | 0.25 mm @ 25 m (136 kHz) | 2.2 mm @20 m | 1-3 minutes | 80 MP panorama, paralax free image matching | 2-2.5 min (HDR) | Onboard touchscreen or Trimble Perspective on Windows tablet | Accuracy 14″, Range ±0.5°, Resolution 0.001° | IP54 | Laser class 1, eye safe in accordance with IEC 60825-1 |
| Trimble SX12 | 26.6 kHz | 0.9 m–600 m | 1.5 mm @ 50 m on 18-90% reflectivity | 2.5 mm @100 m std dev on sphere target position | 12 minutes | 3 calibrated cameras in telescope powered by Trimble VISION™ technology | 2.5 min Standard | WLAN via Trimble Access | Accuracy 0.5″, Range ±5.4′, Resolution 0.3″ | IP55 | Pulsed laser 1550 nm; Laser class 1M |

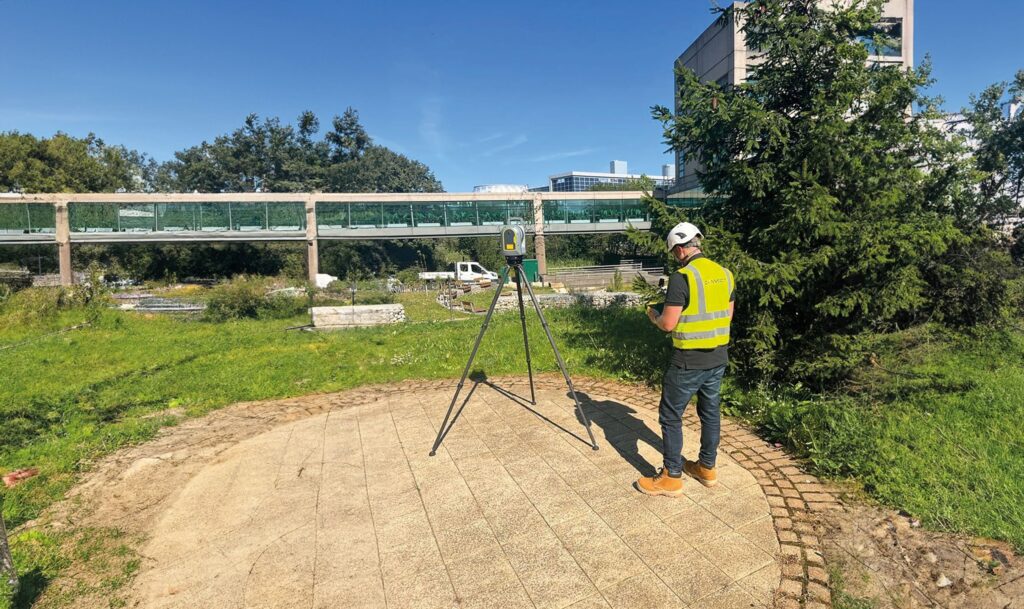

New KOREC case study – Scaling new heights!
How the award-winning company, Connect Scaffolding Ltd, invested in the Trimble X9 3D Laser Scanner and why they’re “100% convinced” they made the right choice.
New KOREC case study: “The Trimble X9 is life changing”
How a small inheritance, a smart business plan, and one unbeatable piece of survey equipment transformed 23 year old architectural assistant, Will Turner, into the successful founder of ScanPlan, a thriving measured building survey company.

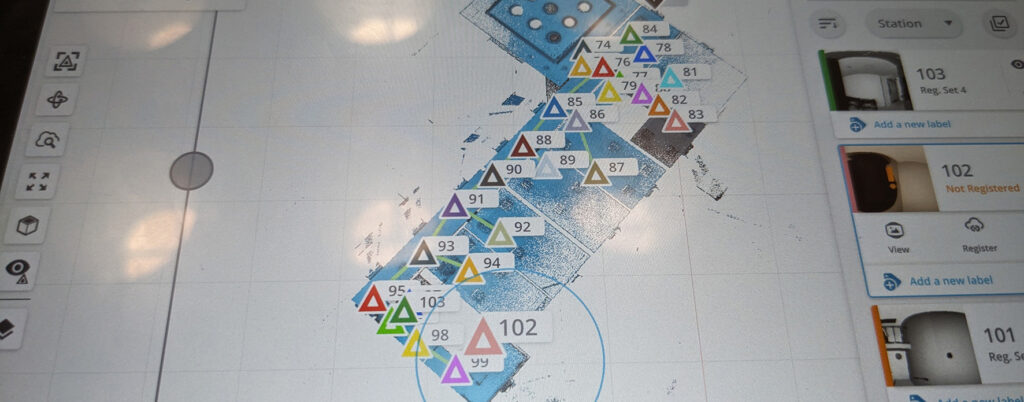

New KOREC case study: Complexity to Clarity
