Why Buy a Trimble S Series Total Station?

There is no shortage of capable total stations on the market. Leica, Topcon, and Sokkia all produce instruments that competent survey teams use every day to good effect. So the more useful question is not whether the Trimble S Series is good, it demonstrably is, but why so many professional teams across the UK and Ireland specifically choose it, and choose to buy through KOREC. This article answers that question directly. For a broader look at what total stations are used for, see our guide on total station use cases. For a detailed comparison of specifications and features across robotic instruments, see our guide on choosing a robotic total station.

What is the Trimble S Series?

The Trimble S Series is a family of robotic total stations spanning four models: the Trimble S5, Trimble S7, Trimble S9, and Trimble S9 HP. Each is built on the same core platform and shares the same fundamental technologies, but they are differentiated by their accuracy tiers, optional capabilities, and the specific applications they are optimised for. All four are robotic, meaning a single operator can control the instrument remotely from the prism end via a radio-linked data collector, without anyone stationed at the instrument. This is the operational model that defines modern field surveying, and the Trimble S Series has been one of the instruments that has set the standard for how that workflow should feel in practice.

The Technologies that Set the Trimble S Series Apart

Trimble MagDrive: Fast, Silent, Frictionless Rotation

At the heart of every Trimble S Series instrument is Trimble MagDrive, a servo motor system that uses magnetic force rather than mechanical gears to rotate the instrument. The result is rotation that is faster, quieter, and more precise than gear-driven systems, with no mechanical wear over time. The instrument turns to a new target at up to 115 degrees per second and arrives there with the smoothness needed for accurate pointing. In practice this means less waiting between observations, and a more reliable pointing accuracy on every shot.

Trimble SurePoint: Eliminating Measurement Error

Trimble SurePoint™ is an advanced tilt compensation and stabilisation technology designed to eliminate measurement errors caused by instrument movement, wind, and mislevelment in real time. The practical outcome is faster measurements without the accuracy compromise that comes from accepting a slightly imperfect point. For operators measuring at pace on a busy construction site, this is the kind of technology that makes a tangible difference to throughput.

Trimble MultiTrack: Reliable Target Acquisition in any Environment

Trimble MultiTrack is Trimble’s active and passive tracking system, which allows the instrument to lock onto and follow a prism reliably even in complex environments with crossing sight lines, obstructions, and other prisms in the field of view. Where older ATR systems could lose lock on a target passing behind a vehicle or another operative and struggle to reacquire it, Trimble MultiTrack re-acquires quickly and confidently. On busy construction sites, in urban survey environments, and on any site where multiple instruments or operatives are working in proximity, this reliability is not a luxury. As one KOREC customer put it: “We’ve put our Trimble S7 through a lot, from surveying to scanning to setting out, and it’s always lived up to our expectations even in torrential rain.“

Trimble Sentinel: Asset Security

Every Trimble S Series instrument can be equipped with Trimble Sentinel, Trimble’s current real-time instrument tracking solution and the successor to the earlier Locate2Protect system. Trimble Sentinel uses an aftermarket device tracking hardware module for the Trimble S5, Trimble S7, Trimble S9, and Trimble S9 HP, paired with a mobile app on iOS or Android that provides real-time location tracking, geofence alerts, and impact sensor notifications in the field. If a total station is lost or stolen, the app allows the instrument to be tracked to its precise location and that information shared quickly with others. Beyond theft recovery, the impact sensor also alerts the user when an instrument has been dropped or subjected to rough handling, prompting a calibration check before costly errors find their way into the data. For businesses where a total station represents a significant capital investment and where site theft is a genuine operational risk, this capability provides a level of protection that most competing instruments do not offer.

The Three Models and what they are best for

Trimble S5: The Dependable All-Rounder

The Trimble S5 is the entry point to the Trimble S Series and the instrument most survey teams reach for first. It includes Trimble MagDrive, Trimble SurePoint, Trimble MultiTrack active and passive tracking, and Trimble Sentinel as standard, meaning there is no meaningful technology compromise at this tier. It is the right choice for teams whose primary workload is construction setting out, topographic survey, and general surveying where survey-grade accuracy and single-operator workflow are the core requirements. One KOREC customer describes it simply: “Our Trimble S5 is used for surveying and setting out on both small and large scale projects. It has yet to let us down, even in the unpredictable Irish weather.“

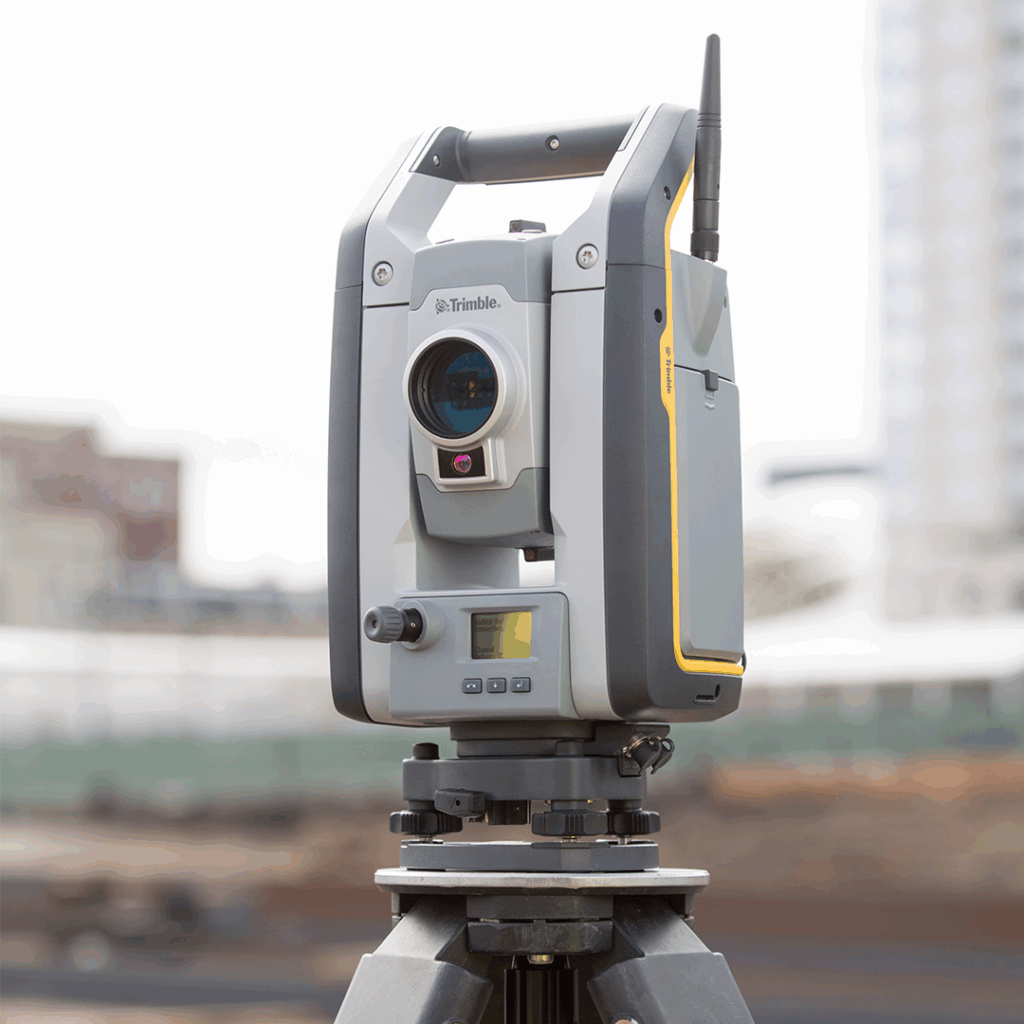

Trimble S7: The One Instrument for Everything

The Trimble S7 adds Trimble VISION imaging and Trimble SureScan scanning capability to the Trimble S5 platform, making it the instrument for teams who want a single total station that can handle survey, scanning, and setting out in the same workflow without switching equipment. Trimble VISION allows the operator to see a live video feed from the instrument on their controller, identifying targets and confirming lock visually from a distance. Trimble SureScan allows defined areas to be scanned at a consistent resolution, capturing surface detail and point cloud data alongside conventional survey measurements. For construction teams, infrastructure engineers, and survey firms that cover a wide variety of project types, the Trimble S7’s flexibility removes the need to carry, maintain, and insure multiple instruments.

Trimble S9 and S9 HP: When Precision is Non-Negotiable

The Trimble S9 and Trimble S9 HP are designed for applications where the tightest accuracy tolerances and the most demanding environments are the norm: structural monitoring, tunnel surveys, precision engineering, rail alignment, and any project where millimetre-level sensitivity must be maintained reliably over time. The Trimble S9 HP achieves angular accuracy better than 0.5 arc seconds and includes Trimble FineLock technology for target detection without interference from adjacent prisms, which is critical in congested measurement environments such as tunnel cross-sections and bridge monitoring arrays. Trimble 4D Control software integrates with the Trimble S9 for automated monitoring programmes, collecting data continuously and alerting project teams when movement exceeds defined thresholds.

The Trimble Ecosystem: Why Integration Matters

One of the strongest practical arguments for the Trimble S Series is what it connects to. Trimble Access field software, which runs on Trimble data collectors including the TSC510 and TSC710, is designed specifically for the S Series and provides a seamless field workflow from instrument setup through to data storage and export. While tablet-based controllers such as the T110 can run Trimble Access, in practice S Series instruments used in construction workflows are more commonly paired with Trimble FieldLink, which is optimised for construction setting out and layout tasks on site. Trimble Business Center completes the loop in the office, handling processing, quality checking, and deliverable production from the same data. Trimble Connect extends this further as a cloud-based collaboration platform and Common Data Environment, allowing project files, 3D models, BIM data, and 2D drawings to be shared and accessed by all project stakeholders in a single, centralised location. For construction and engineering teams working across multiple disciplines, this means field data captured by a total station can flow directly into a shared project environment accessible to designers, engineers, and clients without manual file handling or format conversion. For teams already using Trimble GNSS receivers, all three tools connect into a single integrated workflow, sharing coordinate systems, project files, and software licences. The ecosystem advantage is not simply convenience: it reduces the time spent on data transfer, lowers the risk of errors in handling, and means the total station, the GNSS receiver, and the wider project team speak the same language from field to office. For teams considering a Trimble SX12 scanning total station alongside a robotic rover, the same principle applies: one platform, one software environment, one support relationship.

What the KOREC Buying Experience Includes

KOREC is the authorised Trimble dealer for the UK and Ireland, and the relationship goes considerably further than selling instruments. Every Trimble S Series purchase through KOREC includes access to in-person product training, configuration support, and a dedicated account manager who understands survey and construction workflows rather than just hardware specifications. KOREC’s calibration and repair workshops are UK and Ireland based, which means instruments are not shipped abroad for servicing and return times are measured in days rather than months. A hire fleet of Trimble robotic total stations is available for project-specific requirements, allowing teams to access a higher specification instrument, such as the Trimble S9 for a demanding monitoring project, without committing to the full capital cost. The full Trimble total station range is available to view on the KOREC website, and our team is on hand to discuss which configuration is the right fit for your workload.

Frequently Asked Questions

How does the Trimble S Series stand out from other Robotic Total Stations?

The Trimble S Series is particularly well regarded for its MagDrive servo system, its depth of software integration with Trimble Access, Business Center, and Trimble Connect, and the breadth of UK and Ireland support available through KOREC as the authorised Trimble dealer. For a detailed look at what makes the S Series the right choice for survey and construction professionals, our guide on choosing a robotic total station covers specifications, features, and practical considerations in full.

Can the Trimble S5 be upgraded later?

The Trimble S5 is available with a range of factory-fit options including different angular accuracy tiers and AutoLock or robotic operation. Post-purchase upgrades are more limited, so it is worth discussing your likely future requirements with the KOREC team before specifying the initial order to ensure the configuration leaves room to grow.

Is Trimble Access included with the instrument?

Trimble Access is licensed separately and runs on a compatible Trimble data collector. KOREC can advise on the most appropriate controller and software licence combination for your workflow, and supply the complete system as a single package if required.

What support does KOREC provide after purchase?

KOREC provides ongoing support through a dedicated account management team, UK and Ireland based calibration and repair workshops, access to Trimble software updates, and the option of KOREC Care Packages that bundle calibration, servicing, and loan instrument cover into a predictable annual cost. For teams working across construction, surveying, and mapping and GIS applications, that support structure is designed to keep instruments performing and projects moving.

Let us help you choose the right Trimble S Series

KOREC can advise you on the right total station for your project. Speak to our friendly experts today to get the right technology to solve your business challenges.
