If a project requires refurbishment, redevelopment, restoration or extension of an existing property, it is likely that a measured survey will be required. Here we dig deeper into why, what for, and the equipment used for measured building surveys.
They can be conducted on any building, regardless of age, size, condition or listed status, and on both commercial properties and residential. Although the level of data captured will depend on the needs of the project, even at a basic level, a measured survey provides a highly precise and accurate representation of existing buildings as a starting point for a construction project.
They are often needed in order to obtain planning permission. But in addition to this, they provide a reference point for the start of a project, whether this is internal floor plans, the placement of windows, doors and other architectural features, or clear and detailed photos of the structure in question.
Perhaps most importantly, they can help keep time and costs down on a project. With a measured building survey, accurate data on all elements of a structure is provided, which reduces the chance of mistakes being made, avoiding costly delays.

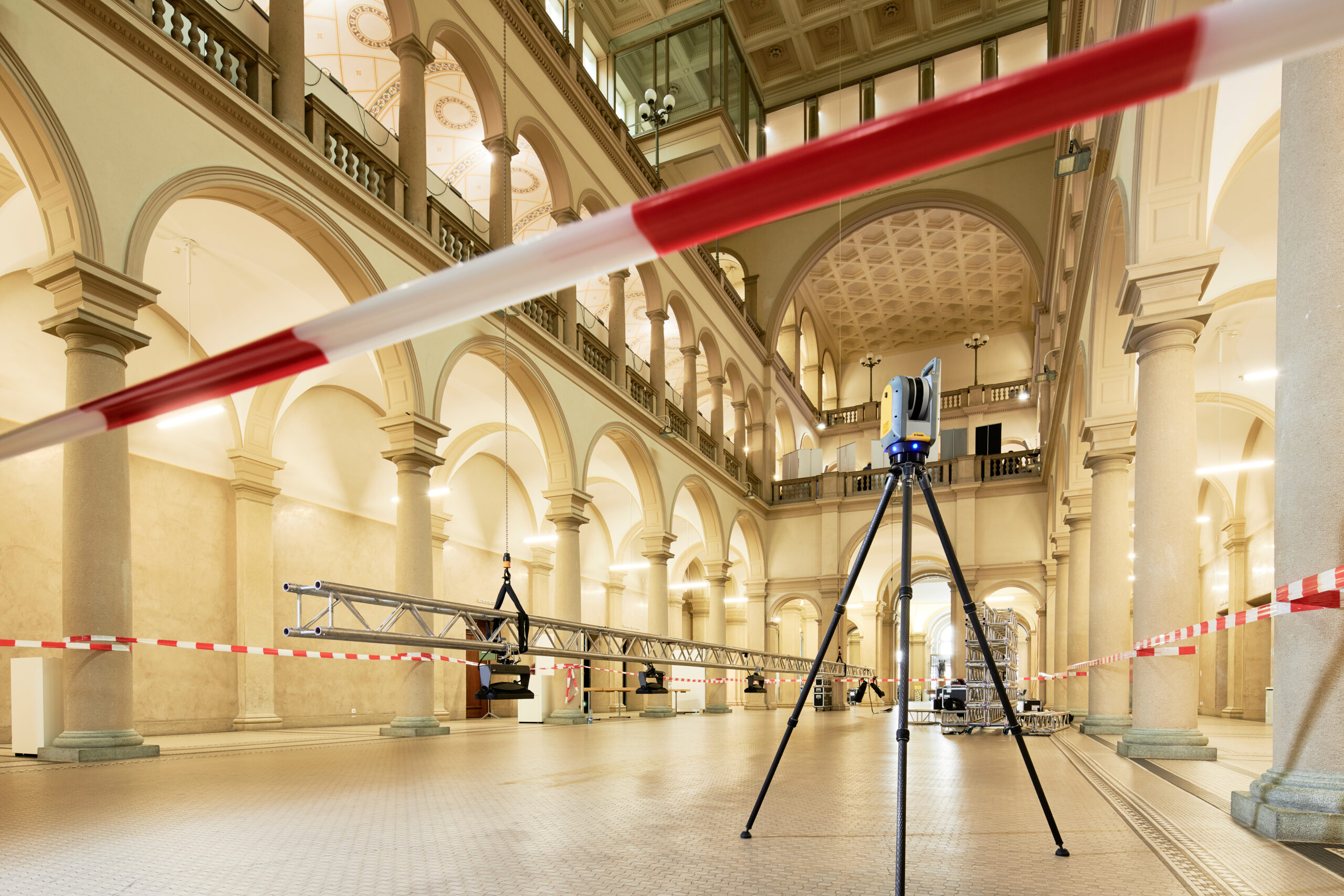

Measured building surveys use a range of specialist equipment to capture all the information needed, however the primary piece of equipment is a laser scanner. A laser scanner allows a surveyor to capture large amounts of geospatial data, even in dangerous or inaccessible areas.
AMR Geomatics surveyed a 9th-century Saxon church in a single day with a Trimble X7 laser scanner, completing around 100 scans, including the bell tower, and registering everything on site before producing a Revit model. At a Grade II listed house in Cumbria, one surveyor completed over 200 scans in a day. The scanner paid for itself in around a year.
Read the full AMR Geomatics case study
Many surveyors will also use a total station – their reliability, sturdiness and high-accuracy measurement of distances and angles makes them ideal for building surveys.
Drones are also starting to be used more widely, as they are excellent for surveying larger areas and offer greater access to often inaccessible areas, such as roofs.
As might be expected, measured surveys generate a lot of data. And in order to collect, share, analyse and visualise all this data, you need software. Thankfully, with programs such as Trimble RealWorks and Trimble CloudEngine, turning the huge amounts of data that measured surveys generate into easily-understandable plans, maps and models is easy. For a broader look at the equipment used across construction survey applications, see our guide on what equipment is used for construction setting out.
Once a building has been scanned, the point cloud becomes the basis for the survey drawings. In this short training video, KOREC shows how to draw building elevations directly from a point cloud in AutoCAD: cropping the scan to the face of the building, setting up a view aligned to that face, and tracing the walls, windows and doors to produce elevation drawings ready for the design team.
Yes. Measured building surveys can be conducted on any building regardless of age, size, condition, or listed status, and on both commercial and residential properties.
A laser scanner is the primary piece of equipment, allowing a surveyor to capture large amounts of geospatial data quickly, even in dangerous or inaccessible areas.
Yes, increasingly so. Drones are excellent for surveying larger areas and offer greater access to otherwise hard-to-reach parts of a building, such as roofs.
Programs such as Trimble RealWorks and Trimble CloudEngine are used to collect, share, analyse, and visualise the large amounts of data generated during a measured survey, turning it into easily understandable plans, maps, and models.
Yes. By providing accurate data on all elements of a structure, a measured building survey reduces the chance of mistakes being made, which in turn helps avoid costly delays.
