Find out what equipment is used for construction setting out, from total stations and GNSS through to augmented reality visualisation, and how these tools improve accuracy and reduce rework on site.
Construction setting out relies on accurate survey equipment to transfer a digital design onto the ground. Whether you’re positioning foundations, steel columns, drainage runs or structural grids, choosing the right instrument is essential to minimise rework and keep projects on programme.
This guide introduces the principal technologies used for modern construction setting out and explains where each excels. It forms part of KOREC’s Construction Guide series, alongside our articles covering pre-construction surveys and stockpile volume measurement.
Setting out is the process of transferring a design from CAD drawings or a BIM model into precise physical positions on site. Survey control is established before coordinates are uploaded into field software, allowing engineers to accurately position every element of the design.
Unlike traditional tape-and-offset methods, modern digital workflows eliminate manual calculations and significantly reduce the potential for human error.
Getting setting out right first time is critical. Even relatively small positional errors can lead to clashes, delays, expensive remedial works and contractual disputes.
Where millimetre accuracy is required, a robotic total station remains the preferred solution.
The Trimble S5 is designed for everyday construction layout, combining 1 mm + 2 ppm EDM accuracy with fast robotic operation and Active Tracking technology. This allows a single engineer to efficiently set out foundations, steelwork, bolt locations and structural grids while maintaining exceptional positional accuracy.
For many contractors, the S5 becomes the primary setting out instrument throughout the construction phase.
Total stations are particularly suited to:
Unlike GNSS, total stations are unaffected by poor satellite visibility and consistently provide higher positional accuracy.

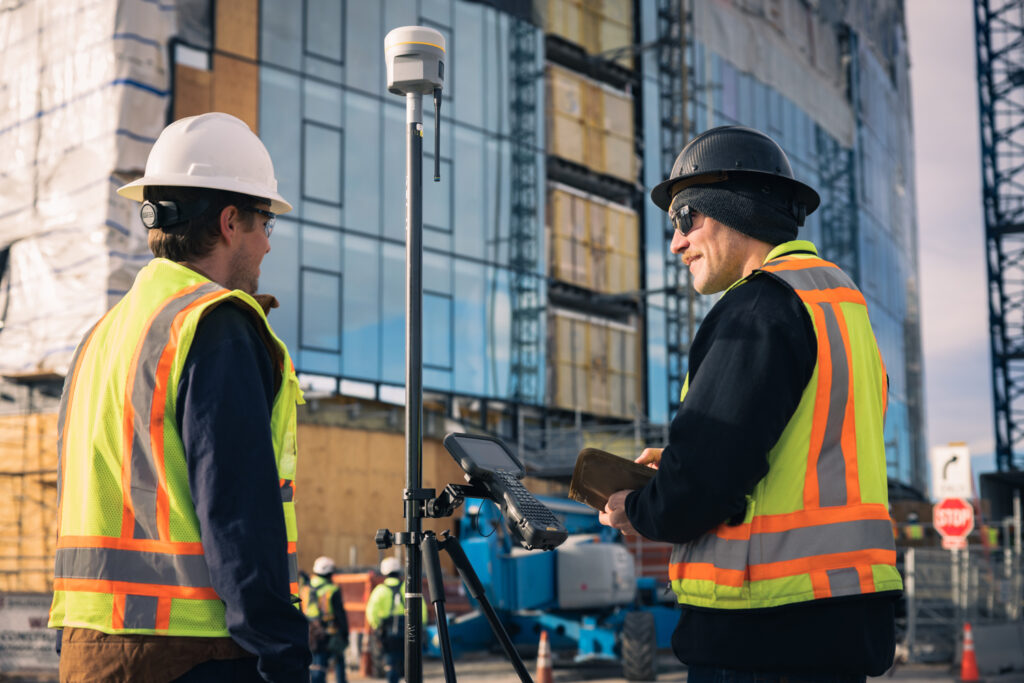

GNSS receivers such as the Trimble R980 provide rapid positioning over large, open sites where maintaining line of sight to a total station would be impractical.
Groundworkers, civil engineering contractors and earthworks teams benefit from being able to move freely around site while maintaining centimetre-level positioning using correction services.
Typical applications include:
Although modern GNSS technology is extremely capable, performance can reduce around tall buildings, scaffolding, tree cover or other obstructions due to signal blockage and multipath reflections.
For structural setting out or work requiring the highest levels of accuracy, a total station remains the preferred solution.
Trimble SiteVision brings digital designs into the real world using augmented reality.
Rather than interpreting drawings and mentally visualising the finished construction, Trimble SiteVision projects the BIM model directly onto the live site, allowing engineers, contractors and clients to see proposed works in their intended location.
This provides a powerful way to communicate designs, validate construction proposals and improve stakeholder understanding.
Trimble SiteVision can also display buried utilities and underground infrastructure before excavation begins.
Being able to identify potential clashes before breaking ground helps reduce project risk, avoid utility strikes and improve overall site safety.
Modern construction projects increasingly rely on connected digital workflows rather than isolated survey instruments.

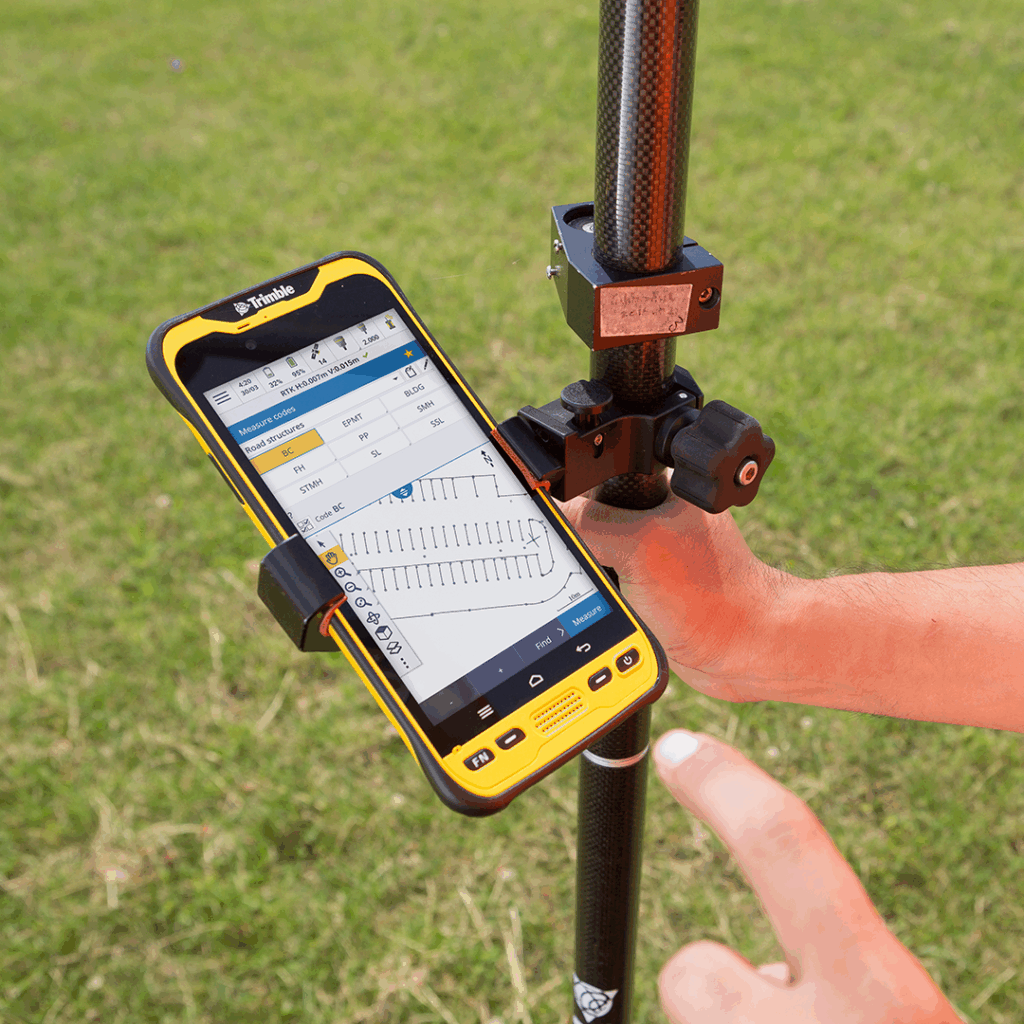

Trimble Access field software controls both total stations and GNSS receivers using a common interface, allowing surveyors to move between technologies without changing workflows.
Design data is prepared in Trimble Business Center before being transferred to site, while completed as-built information can be synchronised through Trimble Connect, providing a common data environment (CDE) that keeps office and field teams working from the latest information.
This connected workflow improves collaboration, reduces version control issues and ensures everyone is working from the same dataset.
No single instrument is ideal for every setting out task.
Open earthworks may be completed efficiently using GNSS, while structural steelwork often demands the accuracy of a robotic total station. Augmented reality solutions such as Trimble SiteVision complement both by helping teams visualise designs before construction begins.
Selecting the right technology for each application enables contractors to improve productivity, reduce rework and deliver projects more efficiently.
The required tolerance depends on the element being constructed. Structural steelwork and reinforced concrete typically require millimetre-level accuracy, making robotic total stations the preferred instrument.
For some applications, yes. GNSS is ideal for large open sites and general construction layout. However, where the highest accuracy is required or satellite visibility is restricted, a total station remains the better choice.
