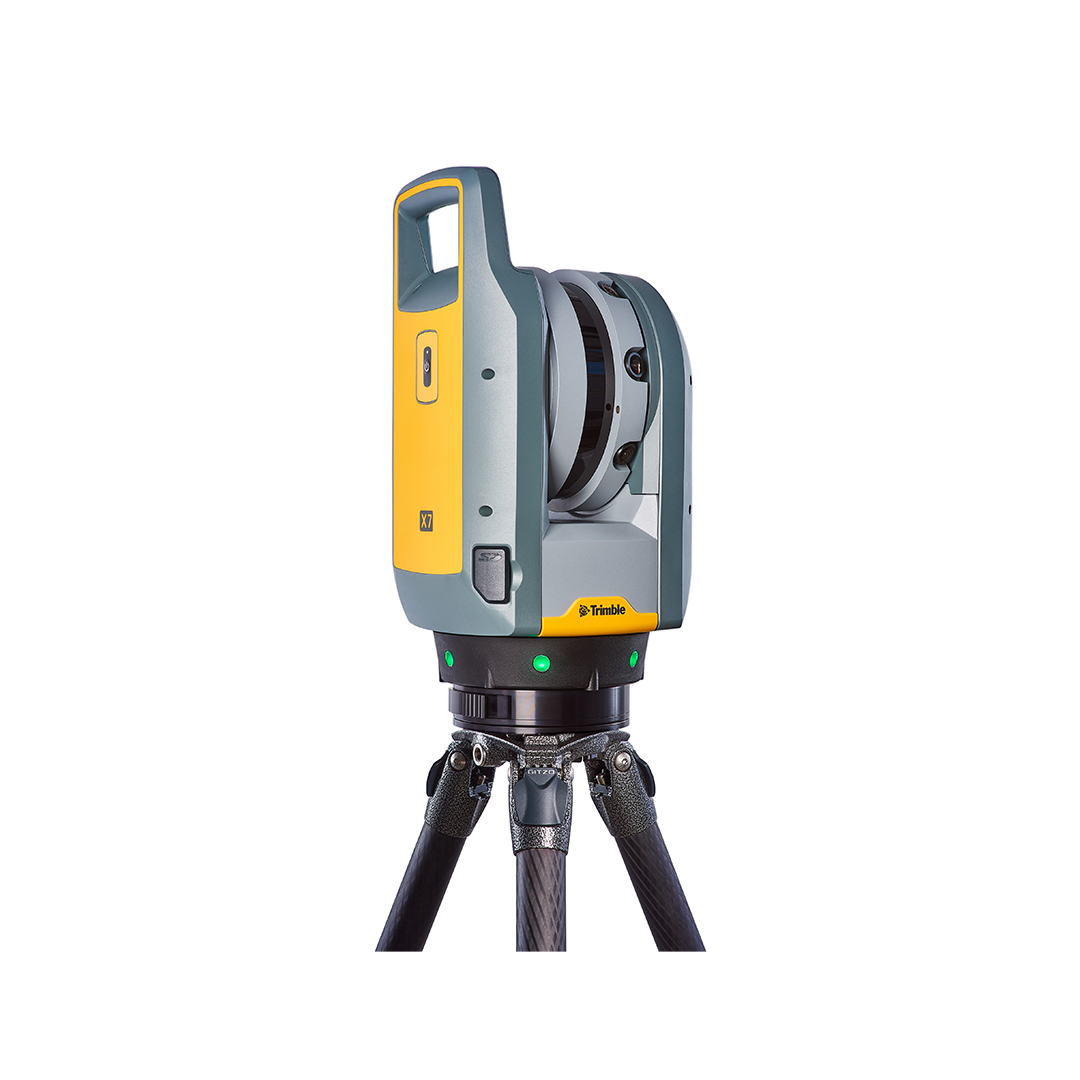

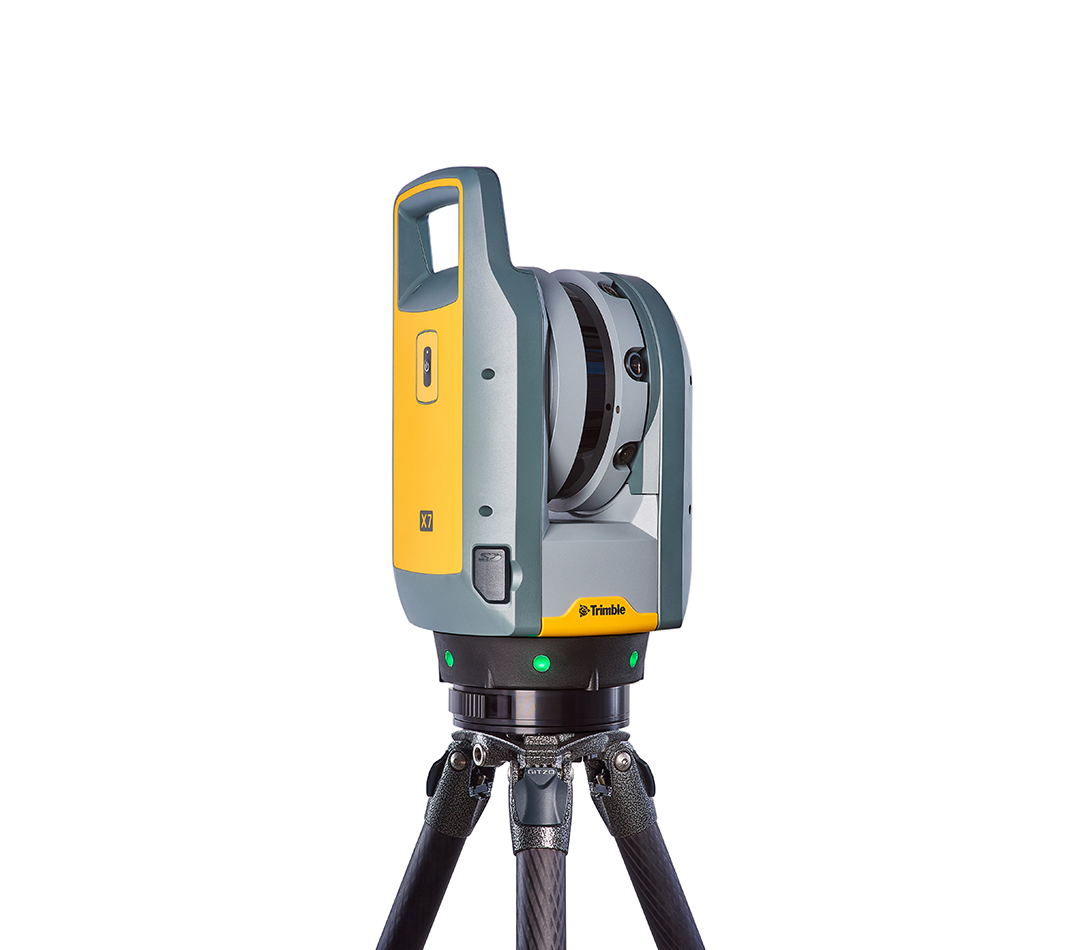

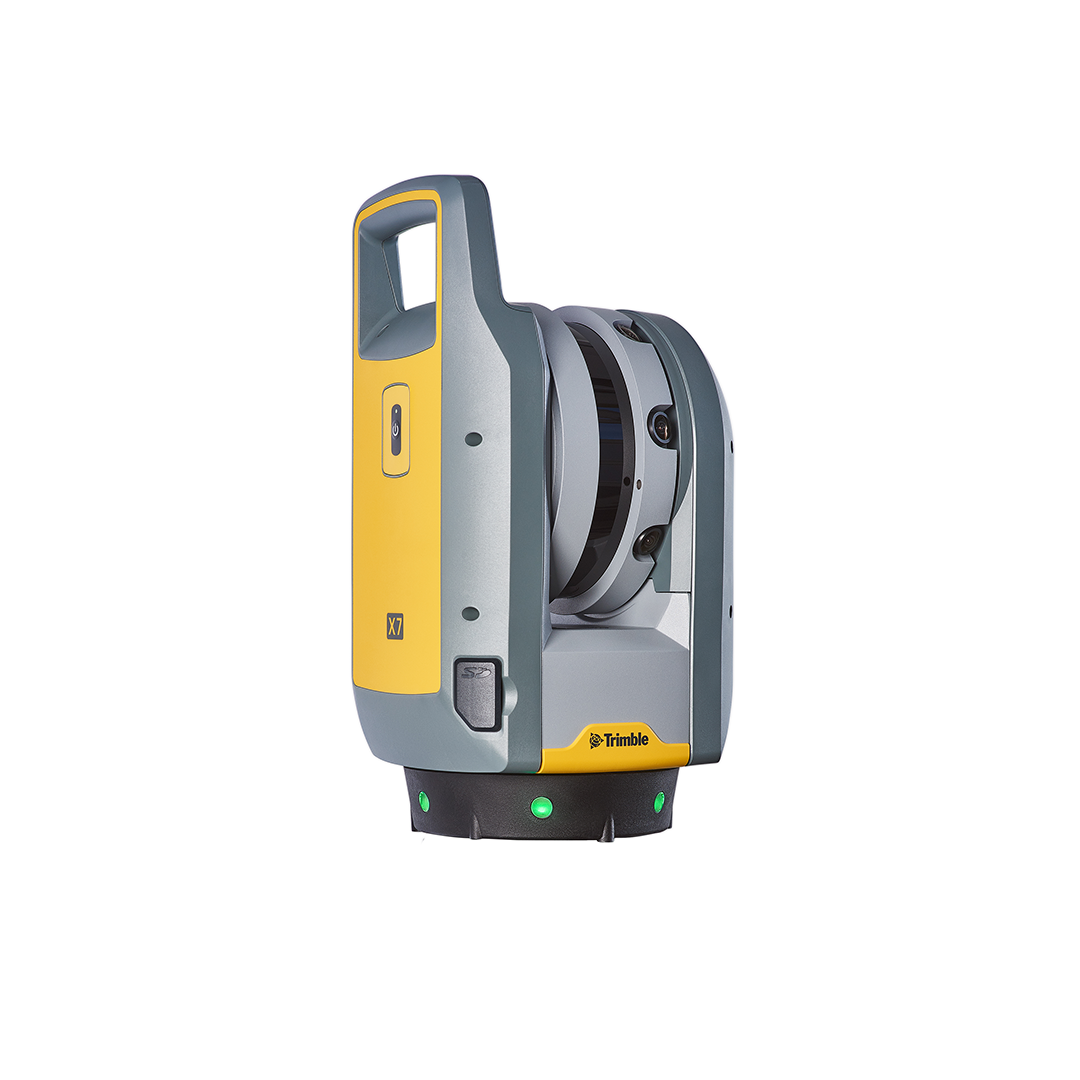

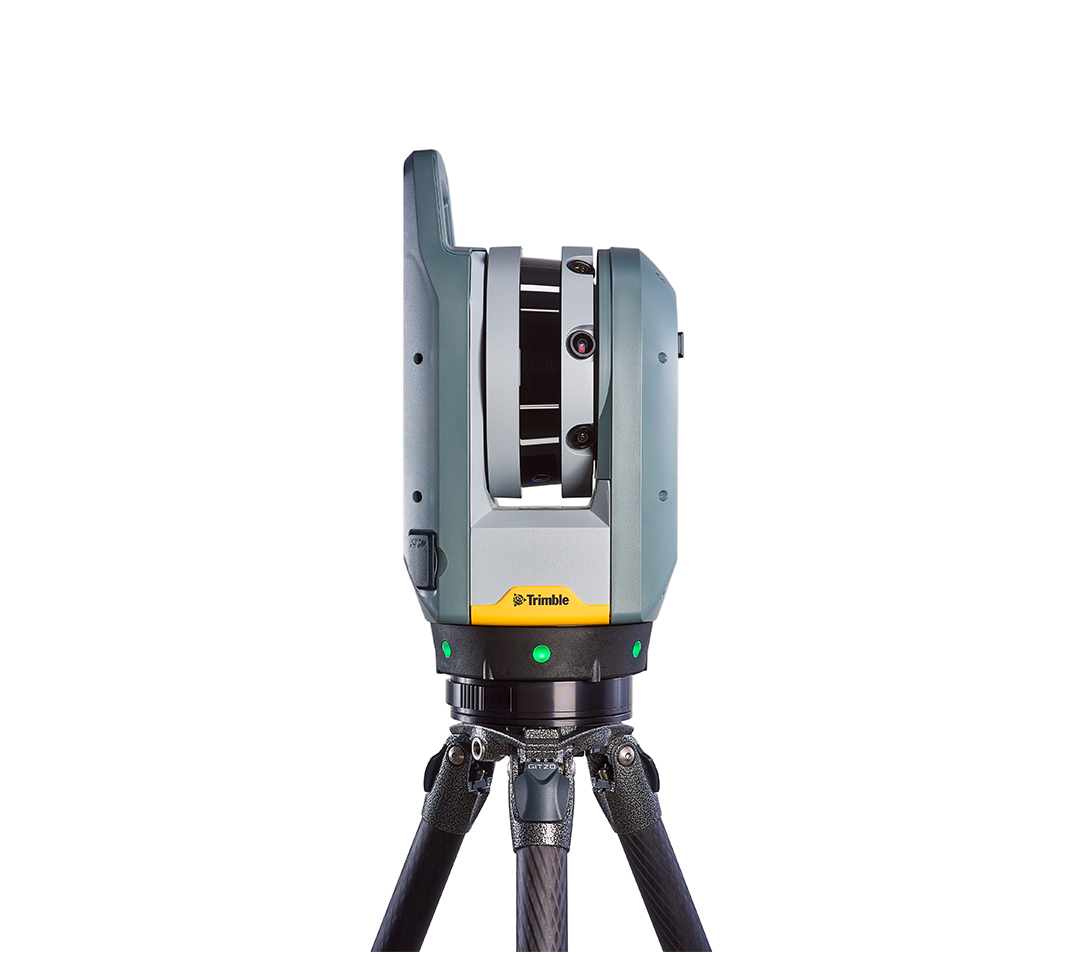

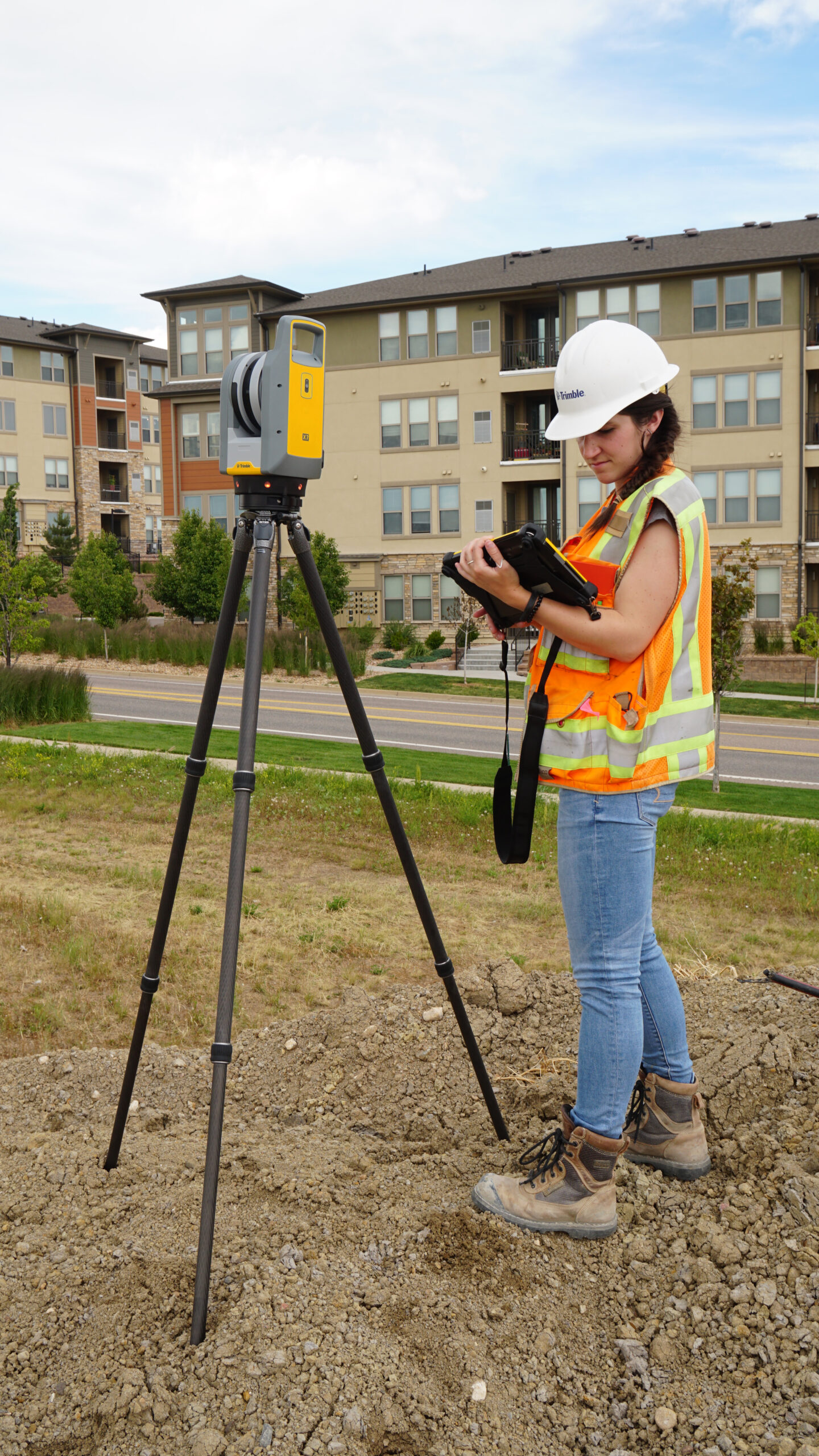

The Trimble® X7 3D Laser Scanner is a compact, lightweight system with new innovations to simplify adoption, increase efficiency and provide confidence in the field. With the Trimble X7 and Trimble Perspective field software, you get a dependable instrument backed by an industry-leading two year warranty and comprehensive workflows to validate scan projects in the field.
Download sample data – Simply fill in this form to request your sample data.
KOREC will email you a link to download.

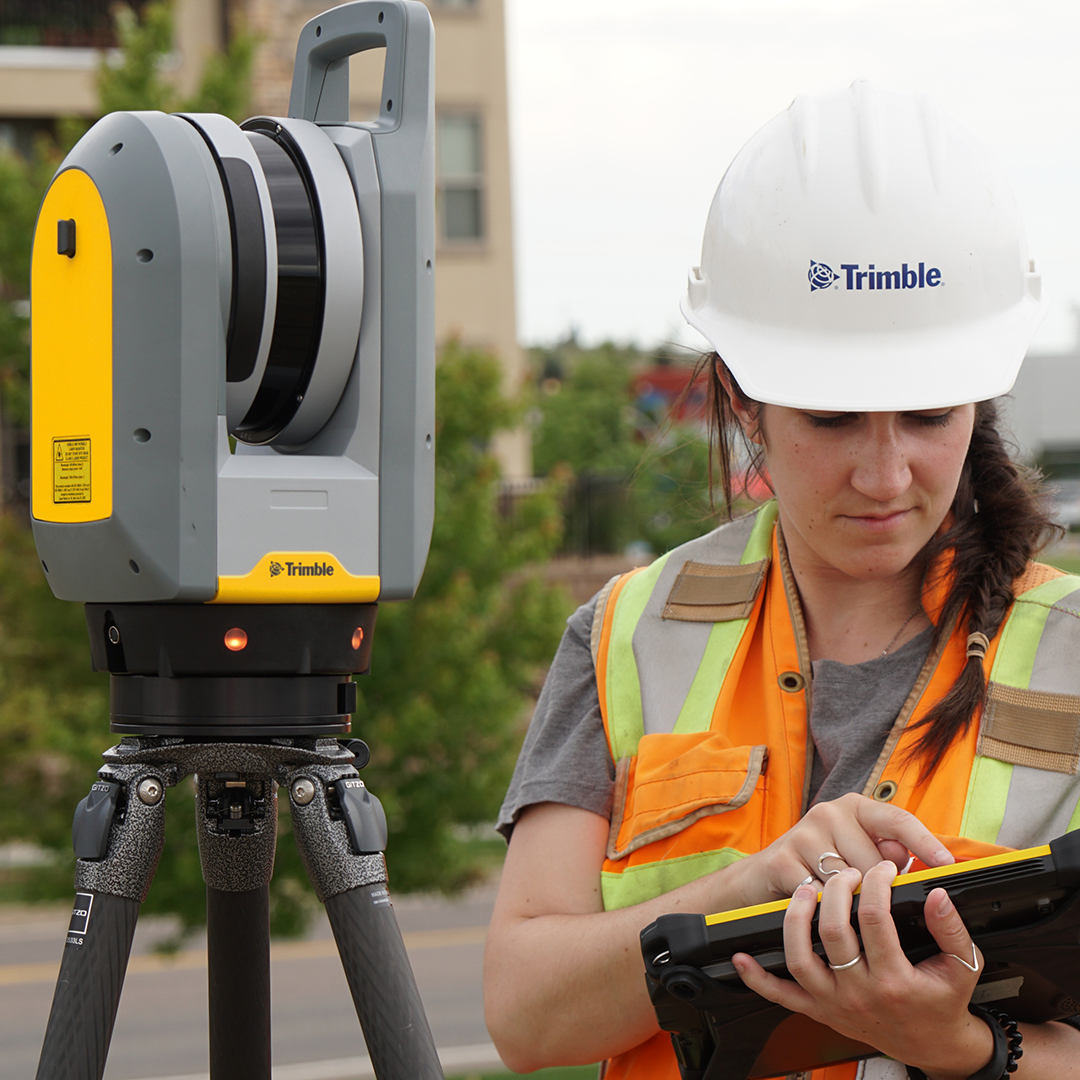

Trusted technological innovations
Field-proven automatic calibration and self-levelling ensure easy setup and accurate data to guarantee consistent results, plus a laser pointer for georeferencing.

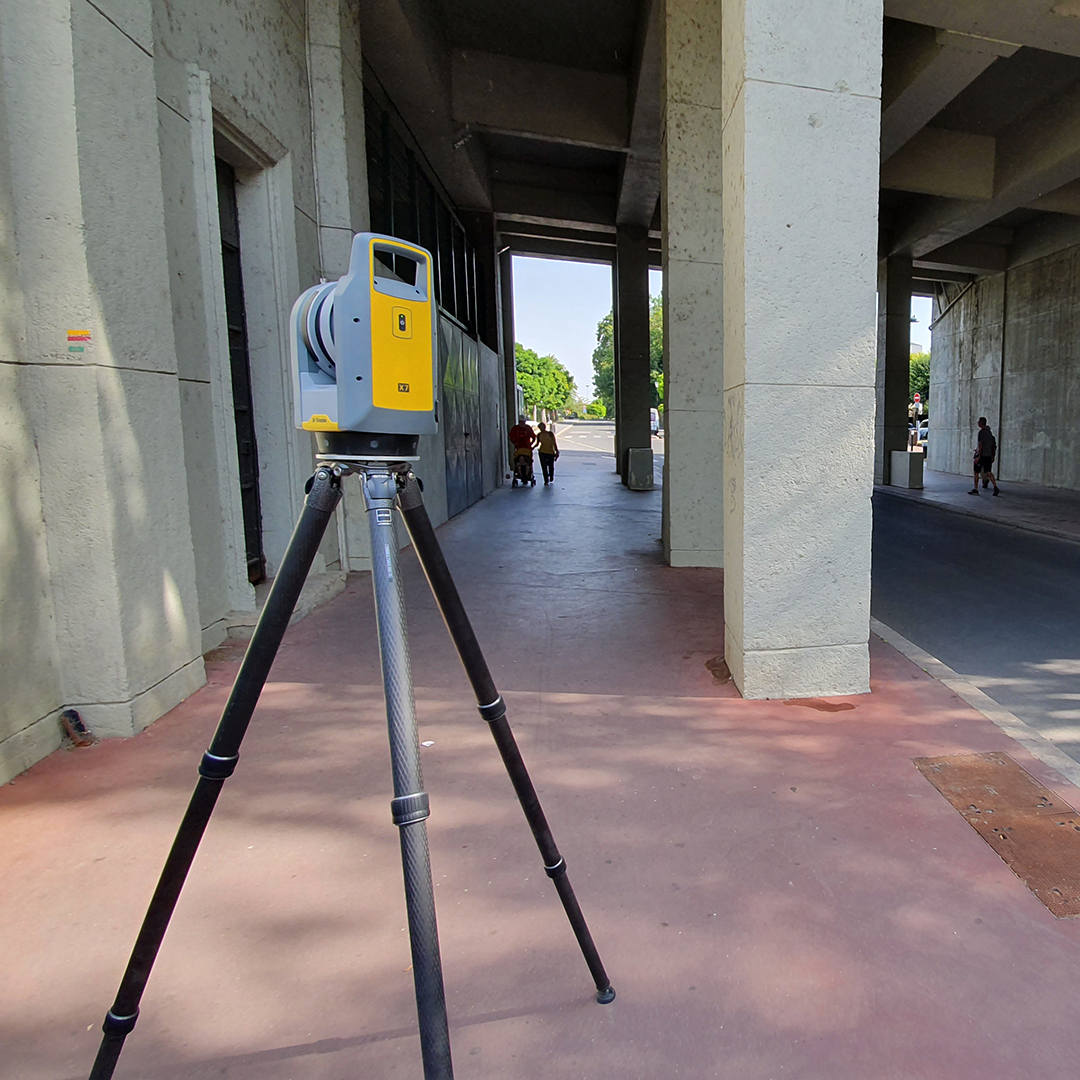

Flexible performance and workflows

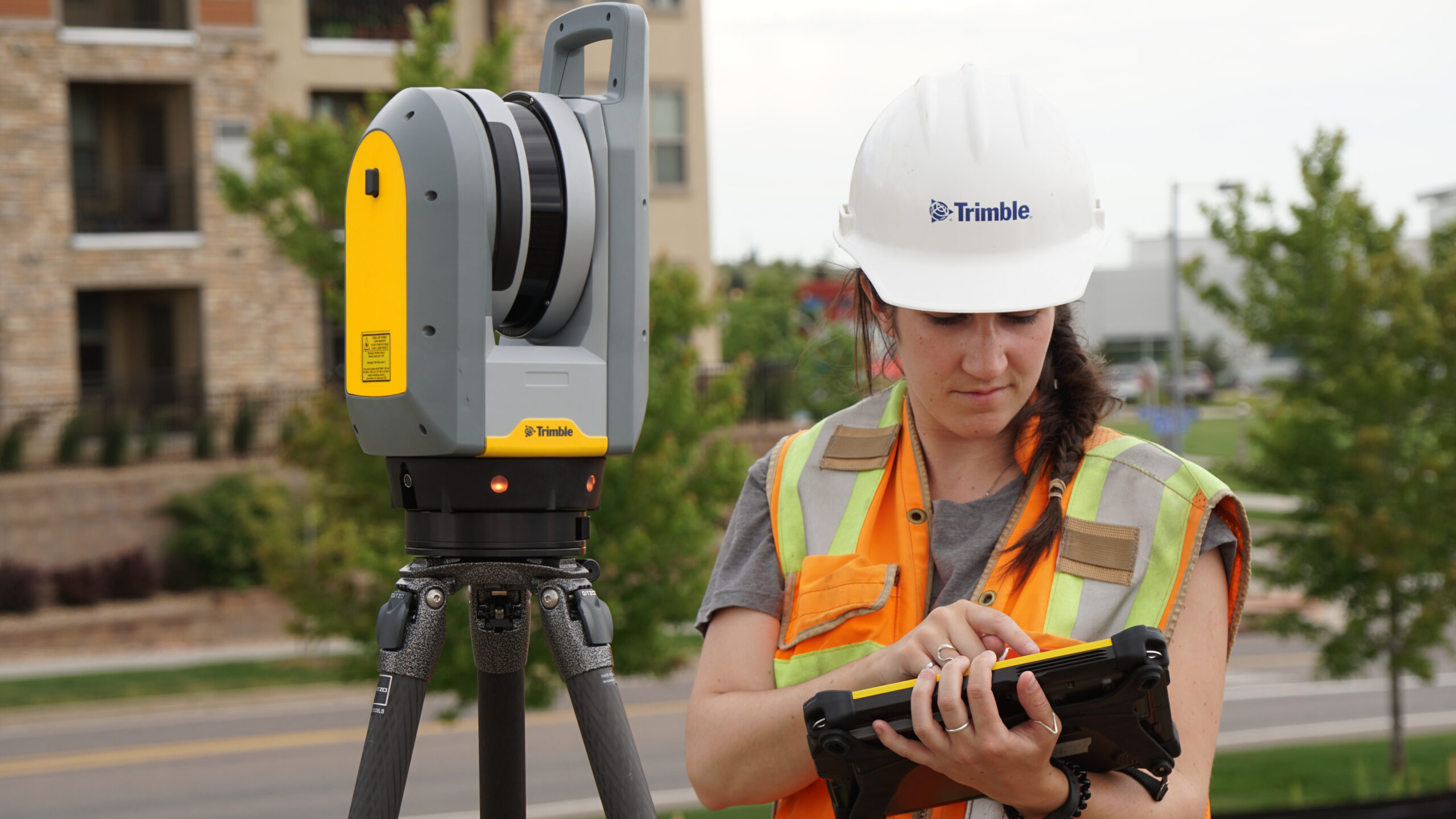

The speed, range, accuracy, sensitivity and environmental capability to scan with confidence in challenging conditions using tablet, phone or hands-free workflows.

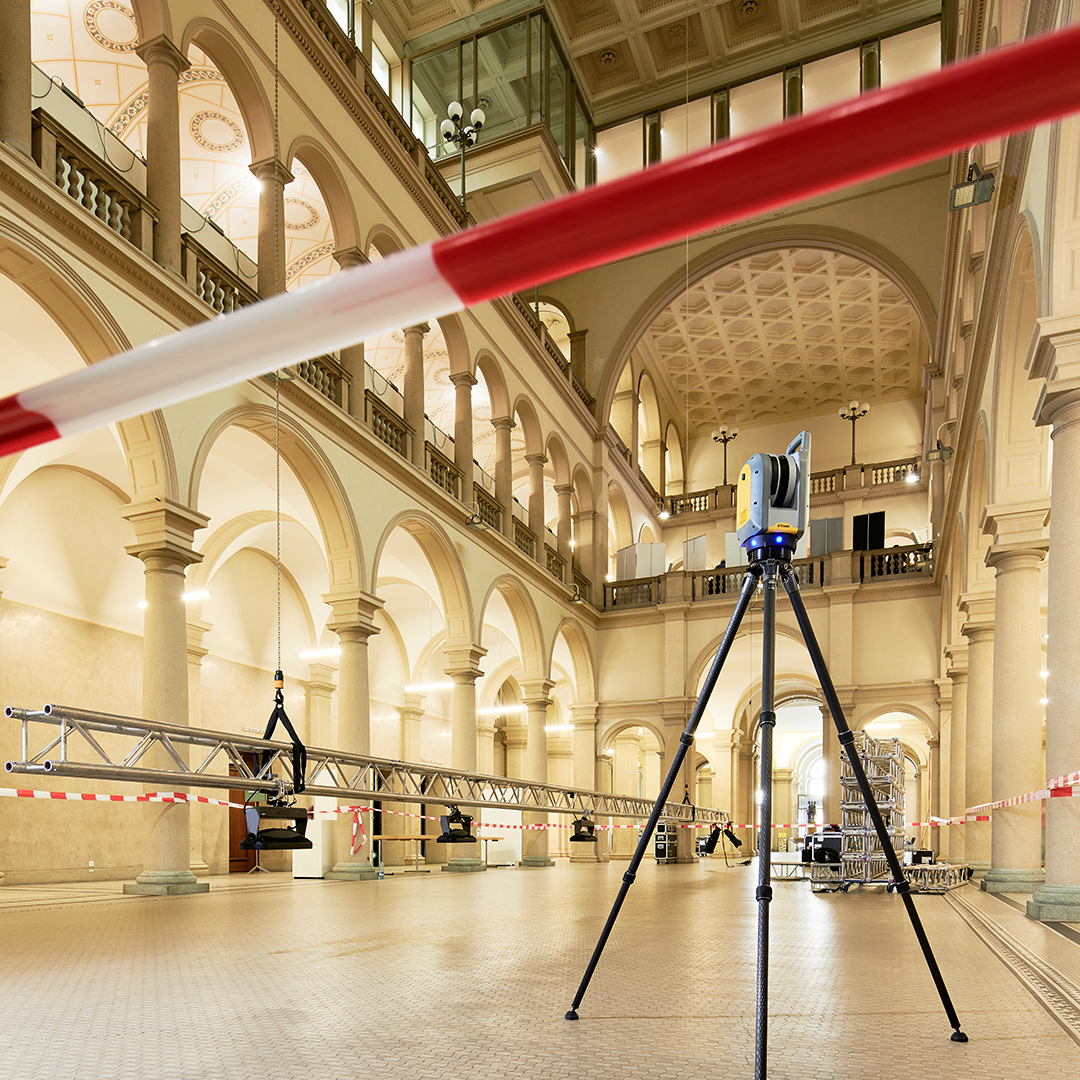

Intuitive and powerful
Trimble Perspective software provides unparalleled clarity in the field with automatic scan registration and full 3D visibility to validate data in real time.

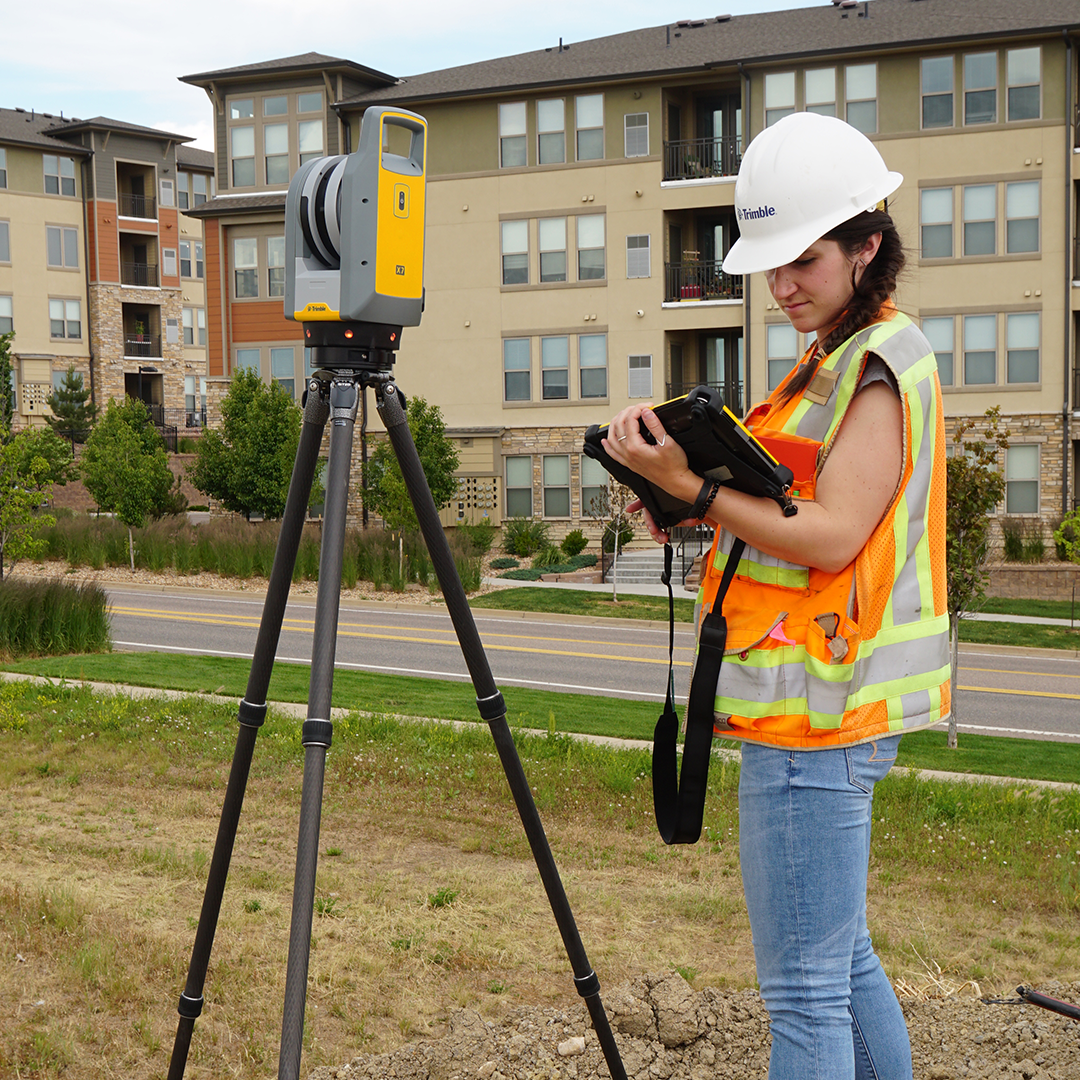

Complete scanning solution
With Trimble Business Center or Trimble RealWorks™ software, leverage advanced application-specific tools for registration, scan analysis and design to enhance final deliverables.
Ideal for users who require a reliable and accurate 3D laser scanner for standard surveying tasks. Its compact design and efficient workflow make it suitable for general applications.
• Scan speed – up to 500kHz
- Scan range- 0.6m-80m
- Scan times – fastest 1 min 34 sec without images, 2 min 34 sec with images
- Auto-calibration – no targets or user interaction for accuracy on every scan
- Self-levelling – Automatic self-levelling with survey-grade accuracy (<3″) Environmental protection – IP55
- Operating temperature – -20°C to +50°C (–4°F to 122°F)
- Ease of use – Intuitive Trimble Perspective workflows
| Terrestrial Scanning Systems | Scan Speed | Scan Range | Range Noise | 3D Point Accuracy | Scan Time | Imaging | Image Acquisition Time | Interface | Dual Axis Compensator | Ingress Protection | Laser Class |
| Trimble X7 | Up to 500 kHz | 0.6 m–80 m | < 2.5 mm @ 30 m | 3.5 mm @20 m | 2-7 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy <3″, Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X9 Core | Up to 500 kHz | 0.6 m–80 m | < 1.5 mm @ 30 m on 80% albedo | 3.0 mm @20 m | 2-7 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy <3″, Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X9 Premium | Up to 1000 kHz | 0.6 m–150 m | < 1.5 mm @ 30 m on 80% albedo | 3.0 mm @20 m | 1-6 minutes | 3 coaxial, calibrated 10MP cameras | 1-2 min Standard (2-6 min HDR) | WLAN via Trimble Perspective Windows tablet or Perspective Mobile from Apple or Android device | Accuracy <3″, Range ±10° | IP55 | Laser class 1, eye safe in accordance with IEC EN60825-1 |
| Trimble X12 | Up to 2,187 kHz | 0.3 m–250 m; 365 m (Ambiguity Interval) | 0.25 mm @ 25 m (136 kHz) | 2.2 mm @20 m | 1-3 minutes | 80 MP panorama, paralax free image matching | 2-2.5 min (HDR) | Onboard touchscreen or Trimble Perspective on Windows tablet | Accuracy 14″, Range ±0.5°, Resolution 0.001° | IP54 | Laser class 1, eye safe in accordance with IEC 60825-1 |
| Trimble SX12 | 26.6 kHz | 0.9 m–600 m | 1.5 mm @ 50 m on 18-90% reflectivity | 2.5 mm @100 m std dev on sphere target position | 12 minutes | 3 calibrated cameras in telescope powered by Trimble VISION™ technology | 2.5 min Standard | WLAN via Trimble Access | Accuracy 0.5″, Range ±5.4′, Resolution 0.3″ | IP55 | Pulsed laser 1550 nm; Laser class 1M |
