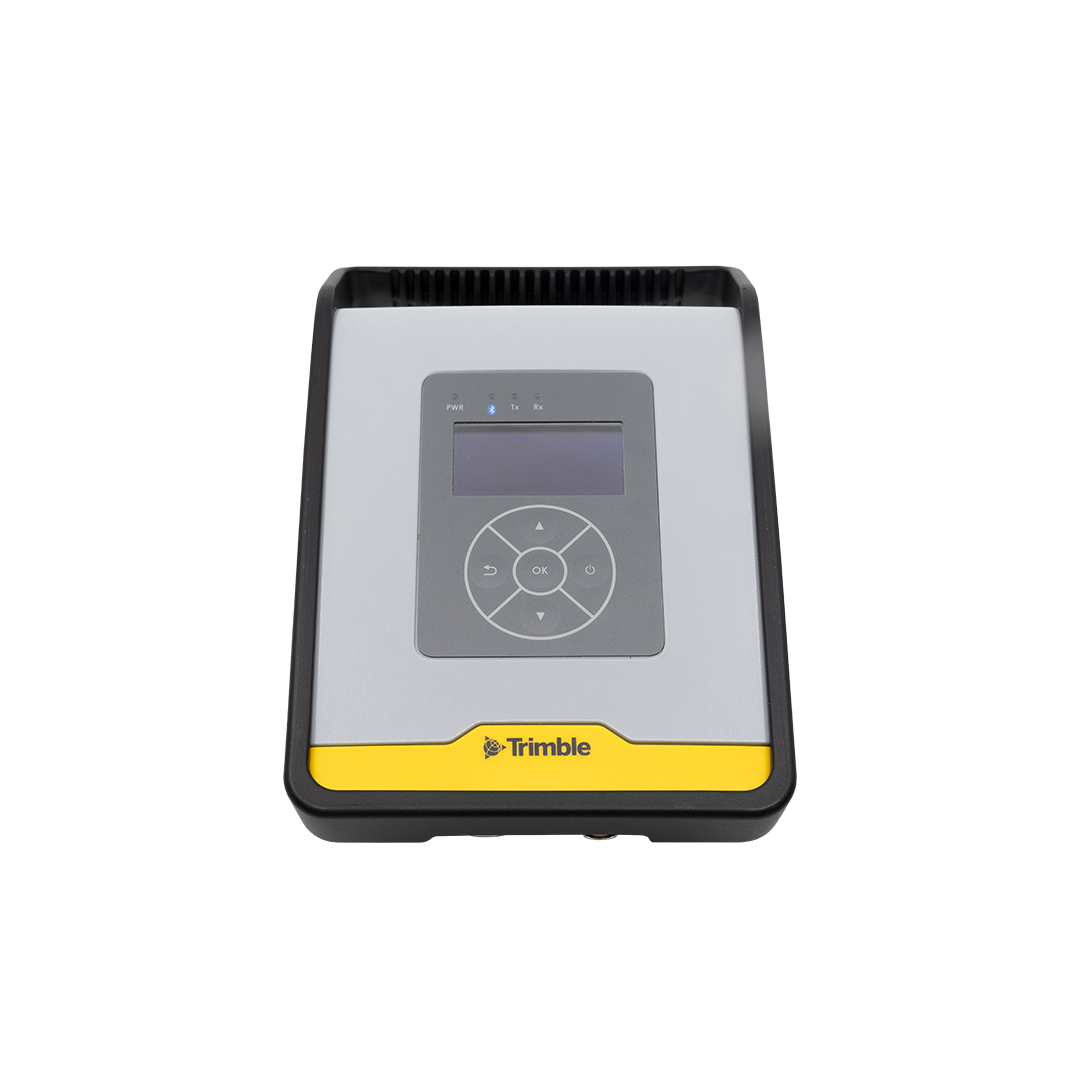

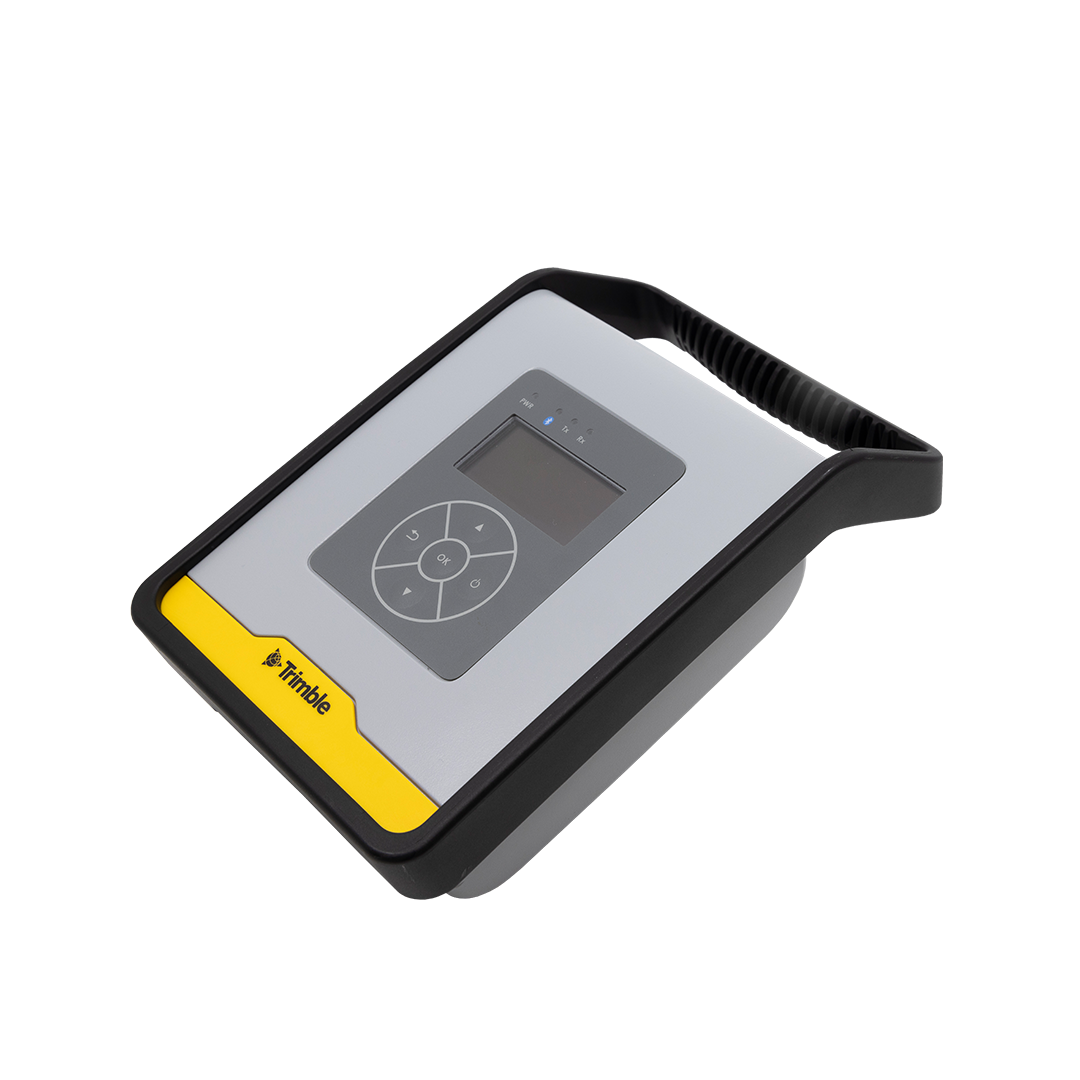

Trimble TDL450B
£POA
PRODUCT ENQUIRY
A high-speed UHF data radio that broadcasts, repeats and receives data used by Trimble GNSS receivers for real-time correction data.
Built to last and extremely versatile, the Trimble TDL450B enhances the accuracy and reliability of positioning in challenging environments, making it ideal for surveying, construction and geospatial applications. It solves signal strength issues and makes the adjustments required to stay productive, even in the toughest conditions.
Strong and tough

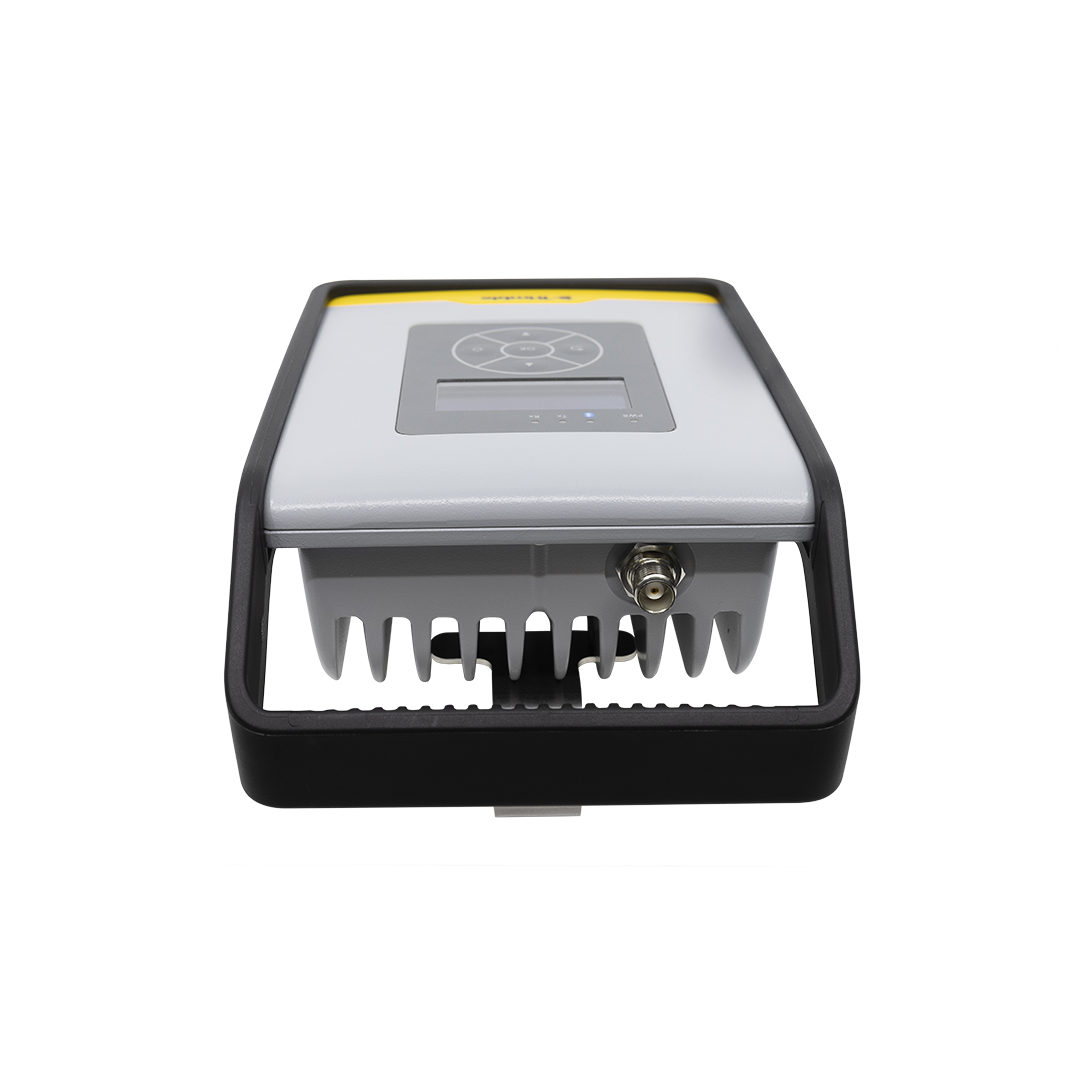

The TDL450B military-spec design and full metal construction, with an IP67 rating, guarantees resilience to impact and weather.
Easy to use
Easy to configure and troubleshoot, with adaptable batteries that allow you to dial up or use a lower power outlet depending on field size and needs.
Flexible

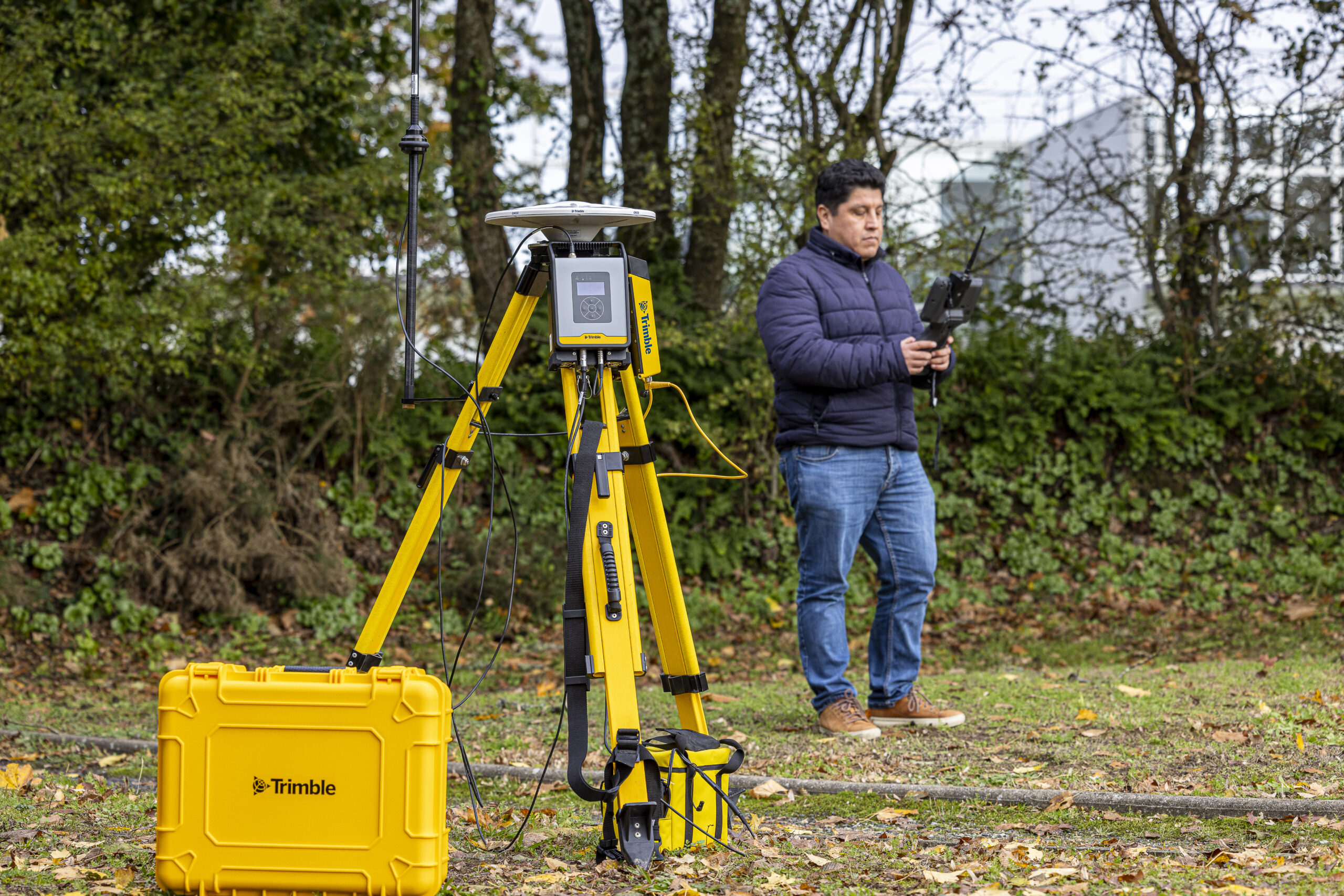

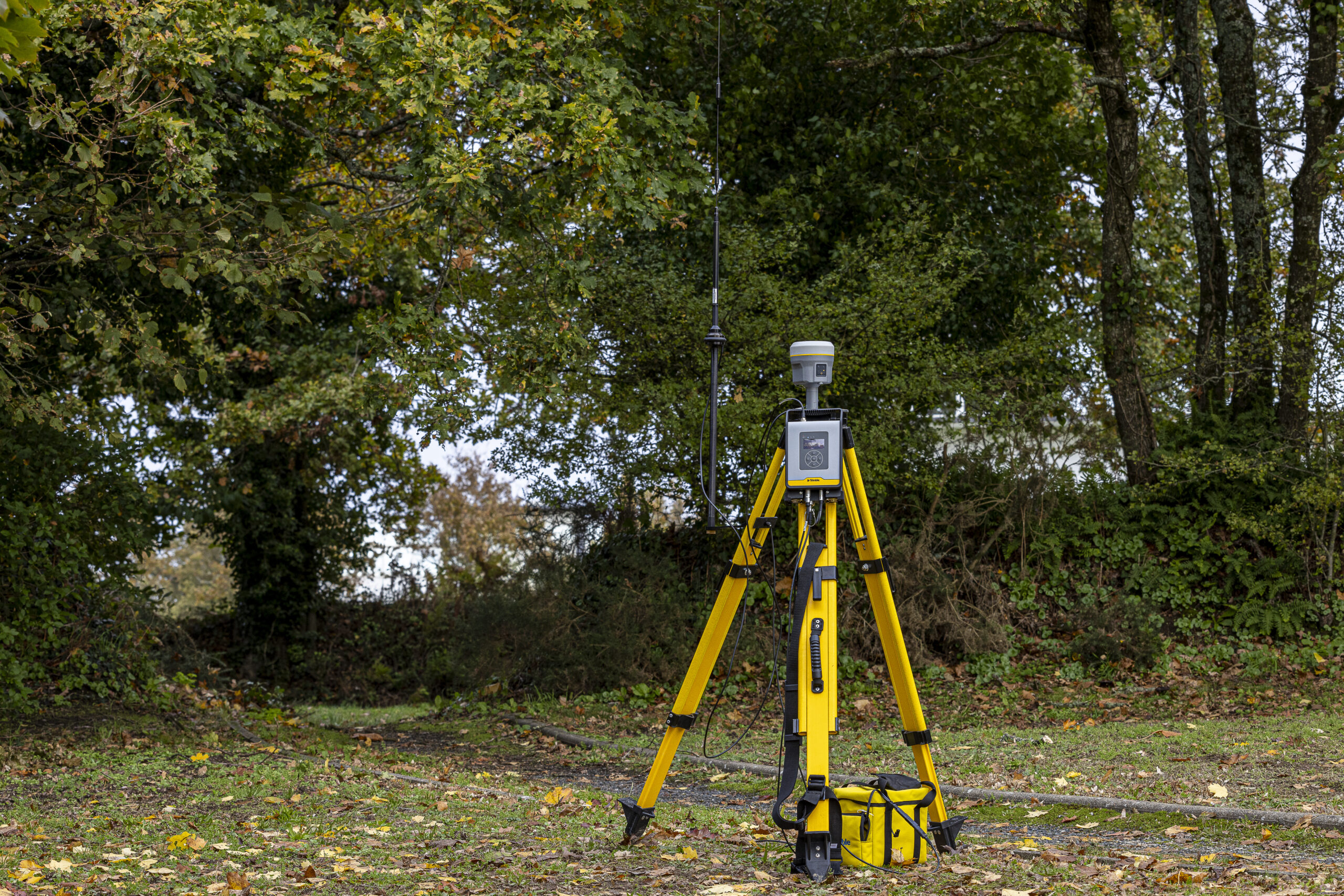

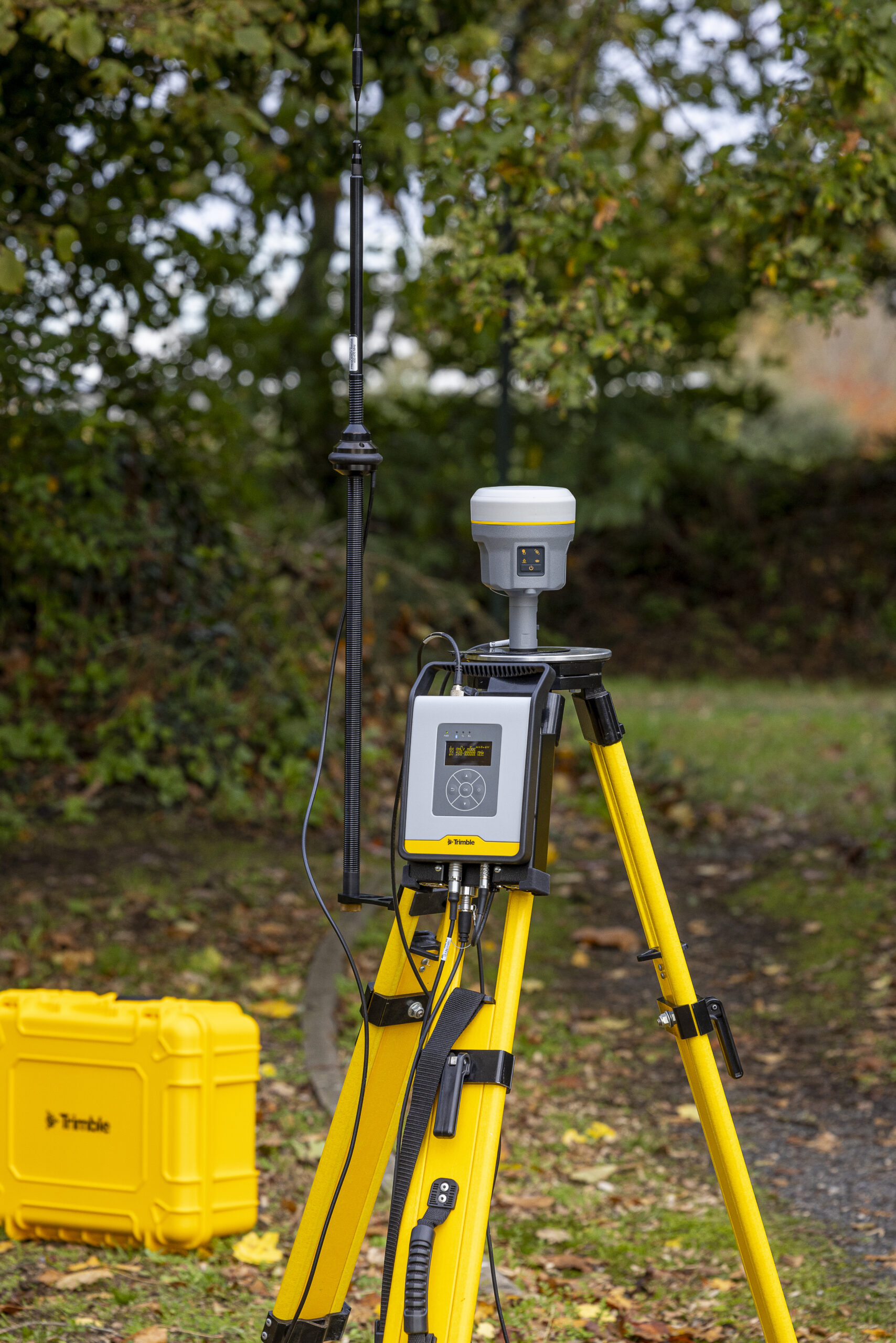

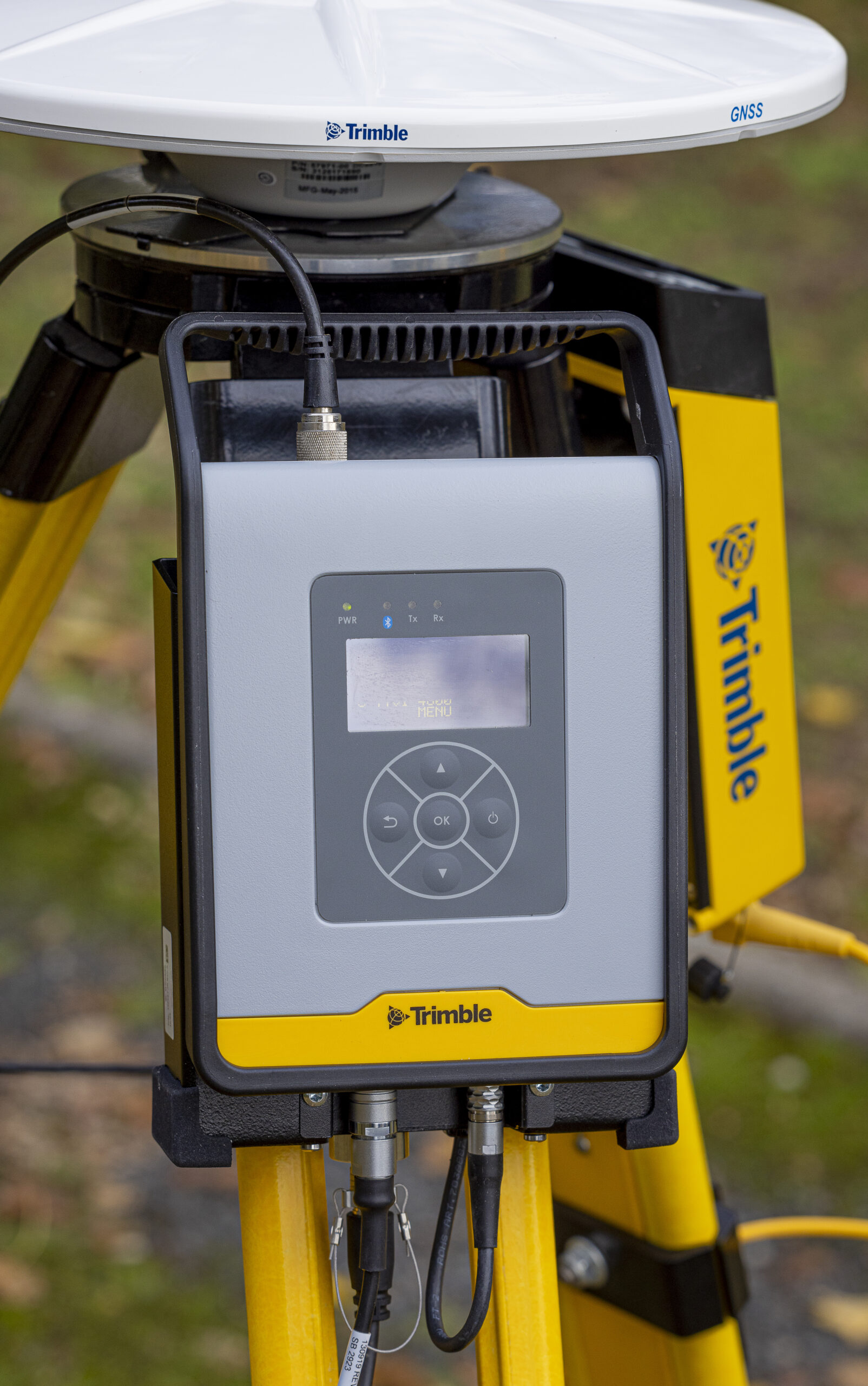

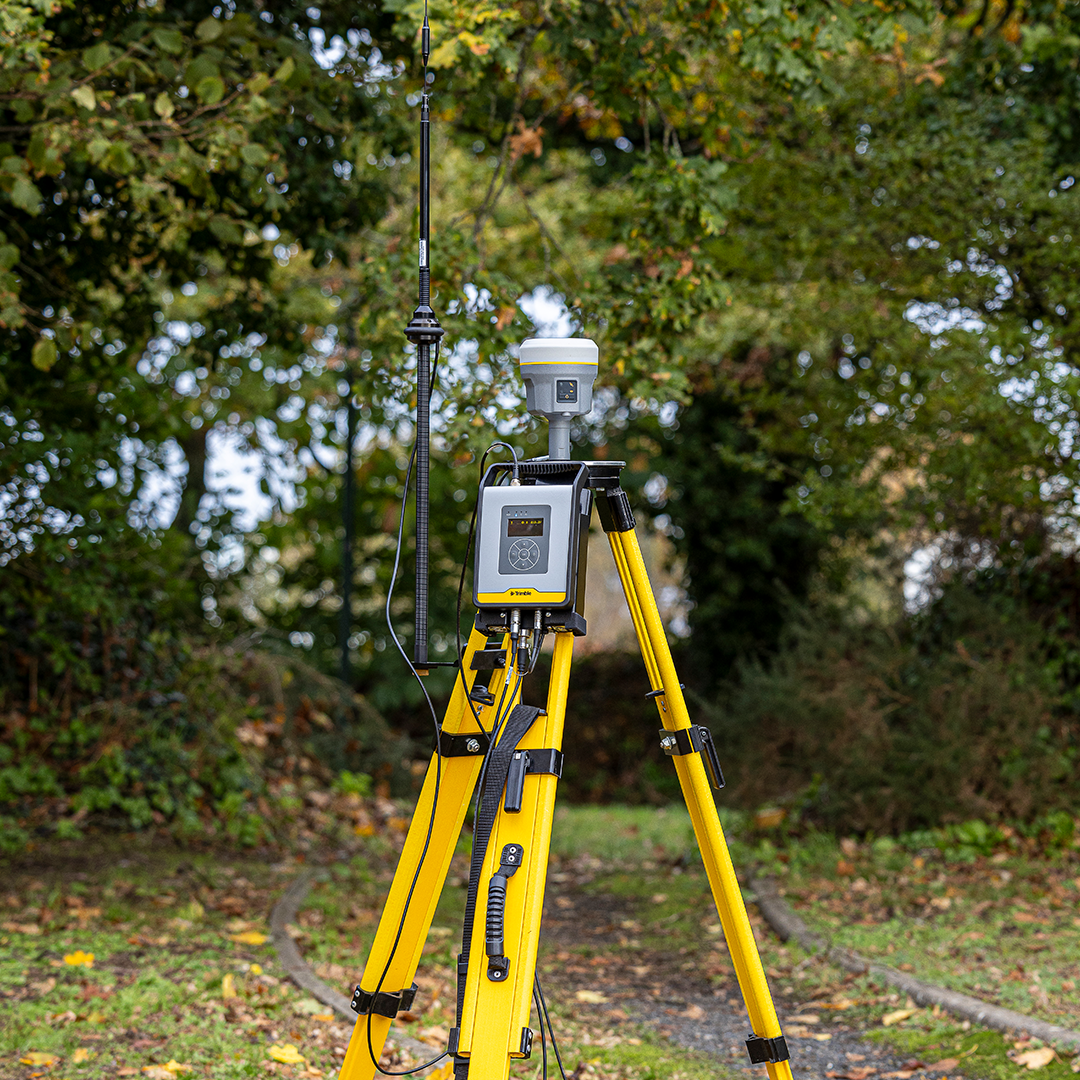

Capable of broadcasting, repeating and receiving real-time data used by Trimble GNSS receivers. Mount it on the same tripod as the receiver or on its own tripod.
Increases productivity
Provides access to diagnostic data with a high over-the-air link rate, enabling you to solve signal strength issues and make adjustments to stay productive.
Broadcasts, repeats and receives real-time data used by Trimble ® GNSS receivers whilst high over-the-air link rate keeps teams productive with less radio downtime.
The TDL450B also provides access to diagnostic data in the field, enabling users to solve signal strength challenges and make adjustments to stay more productive.
• Frequency range – 403–473 MHz
- Over-the-air link rate – 4,800 to 19,200 bps
- Configurable maximum Tx power – up to 35 W
- Corrections for GNSS receivers – 1 Hz RTK
- Environment – IP67 rated
- Vibration – MIL-STD-810F
| Integrated GNSS | Max. Precision | Channels | Antenna | UHF Radio | RTX Compatible | xFill | Memory | Cellular | Satellites | Additional Features |
| Trimble R980 | 8mm H/15 mm V | 672 | Integrated | Receive & transmit 450/900 MHz |
Yes | Yes | 9 GB | 4G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R12i | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450 MHz |
Yes | Yes | 6 GB | 3.5G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R12 | 8 mm H/15 mm V | 672 | Integrated | Receive & transmit 450 MHz |
Yes | Yes | 6 GB | 3.5G | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint |
| Trimble R780 | 8 mm H/15 mm V | 336 | Integrated | Receive & transmit 450/900 MHz |
Yes | Yes | 9 GB | External | GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS, SBAS | ProPoint, TIP Tilt Compensation |
| Trimble R580 | 10 mm H/20 mm V | 336 | Integrated | Receive 450 MHz |
Yes | Yes | 256 MB | External | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS | ProPoint |
| Trimble R2 | 10 mm H/20 mm V | 220 | Integrated | Receive 450 MHz |
Yes | No | 48 MB | External | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS | — |
