Trimble GEDO Scan

Product Code:

The Trimble® GEDO Scan System is an integrated solution combining the Trimble GEDO CE 2.0 TMD and the Trimble TX5 laser scanner, which together, allow you to collect high-resolution datasets for use in track clearance assessments and facilities management.

Description

The Trimble® GEDO Scan System is an integrated solution combining the Trimble GEDO CE 2.0 TMD and the Trimble TX5 laser scanner, which together, allow you to collect high-resolution datasets for use in track clearance assessments and facilities management.

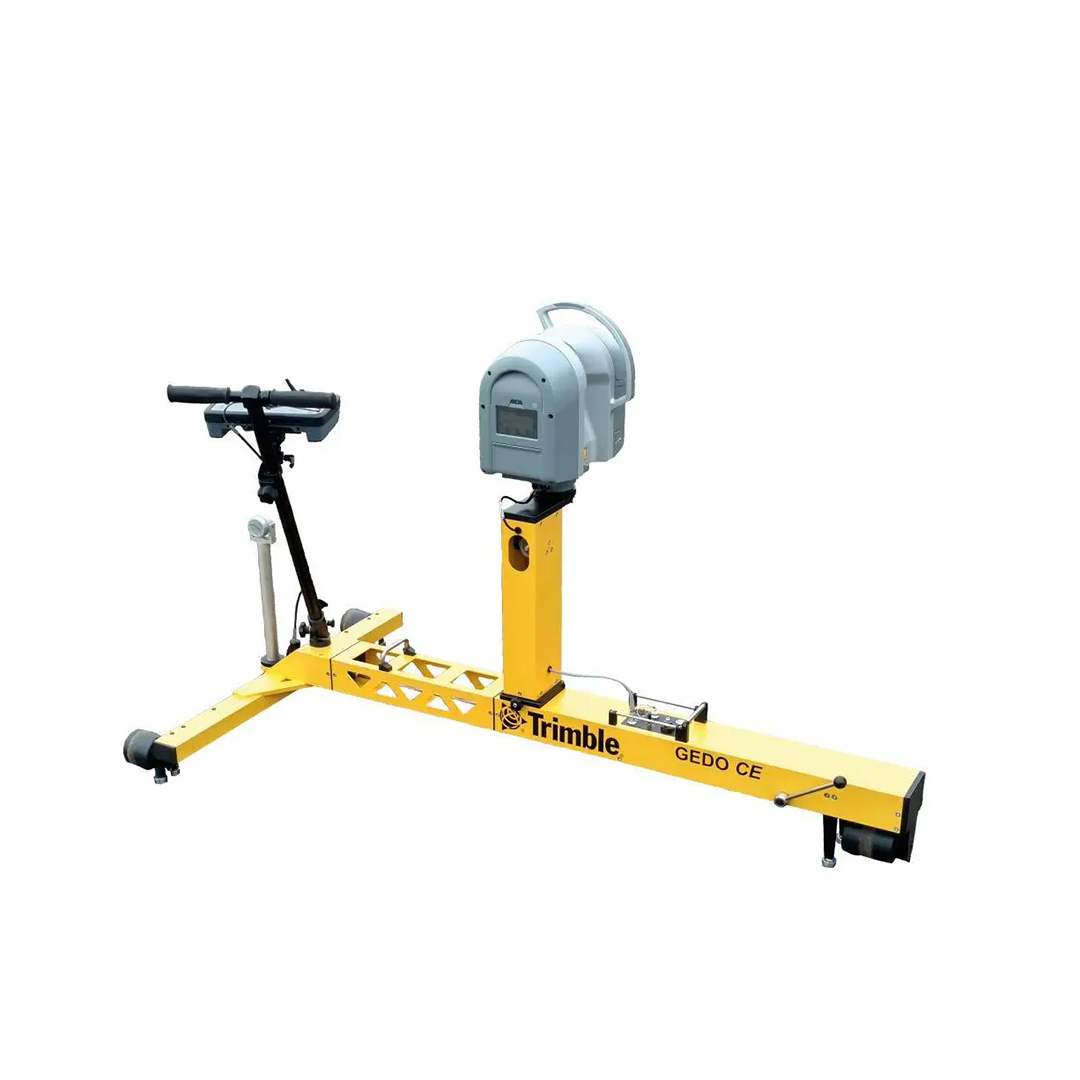

The laser scanner is mounted onto the GEDO device and collects location, gauge and cant information as it moved along the track. The combined data produces detailed 3D models of tunnels, overpasses, stations and other rail facilities where precise information is required for clearance and asset management.

  • Modular system lets you use the Trimble TX5 scanner for other survey needs
  • Workflow and user interface are consistent with other GEDO systems to reduce training time
  • Run GEDO Scan Field software from a Trimble Tablet Rugged PC controller
  • Helical scanning mode captures ceilings and walls to produce accurate 3D Models

COMPACT, FLEXIBLE, CAPTURE MILLIONS OF POINTS IN SECONDS

The Trimble GEDO Scan system has the ability to switch between two distinct modes, Local mode allows you to capture information based on the offset from the rail to nearby objects, ideal for track clearance analysis. Absolute mode creates 3D point clouds and allows you to tie objects to the rail as well as defined coordinate systems. Utilising the Trimble GEDO Scan Office software, you can produce a point cloud and then share this with Trimble RealWorks as well as other design systems.
