Wireless tiltmeter and laser-tilt sensors provide tilt and distance measurement readings for automated movement detection and reporting. Tiltmeters provide highly accurate tri-axial readings, providing data for informed decision making on structural health.
Distance and tilt

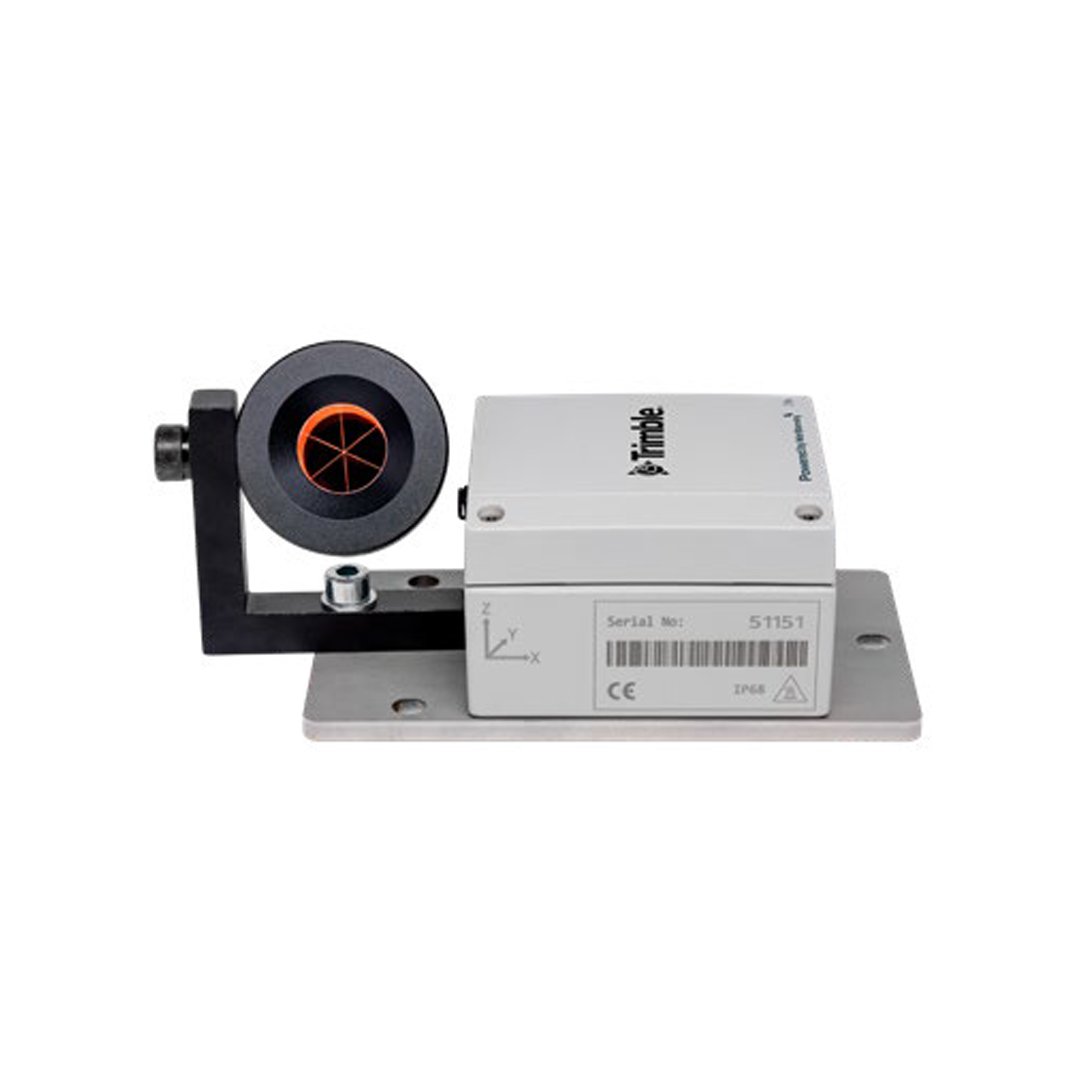

This wireless sensor is a 2-in-1 laser distance meter and tiltmeter. They measure change in inclination and relative distance between pairs of reference points.
Versatile monitoring

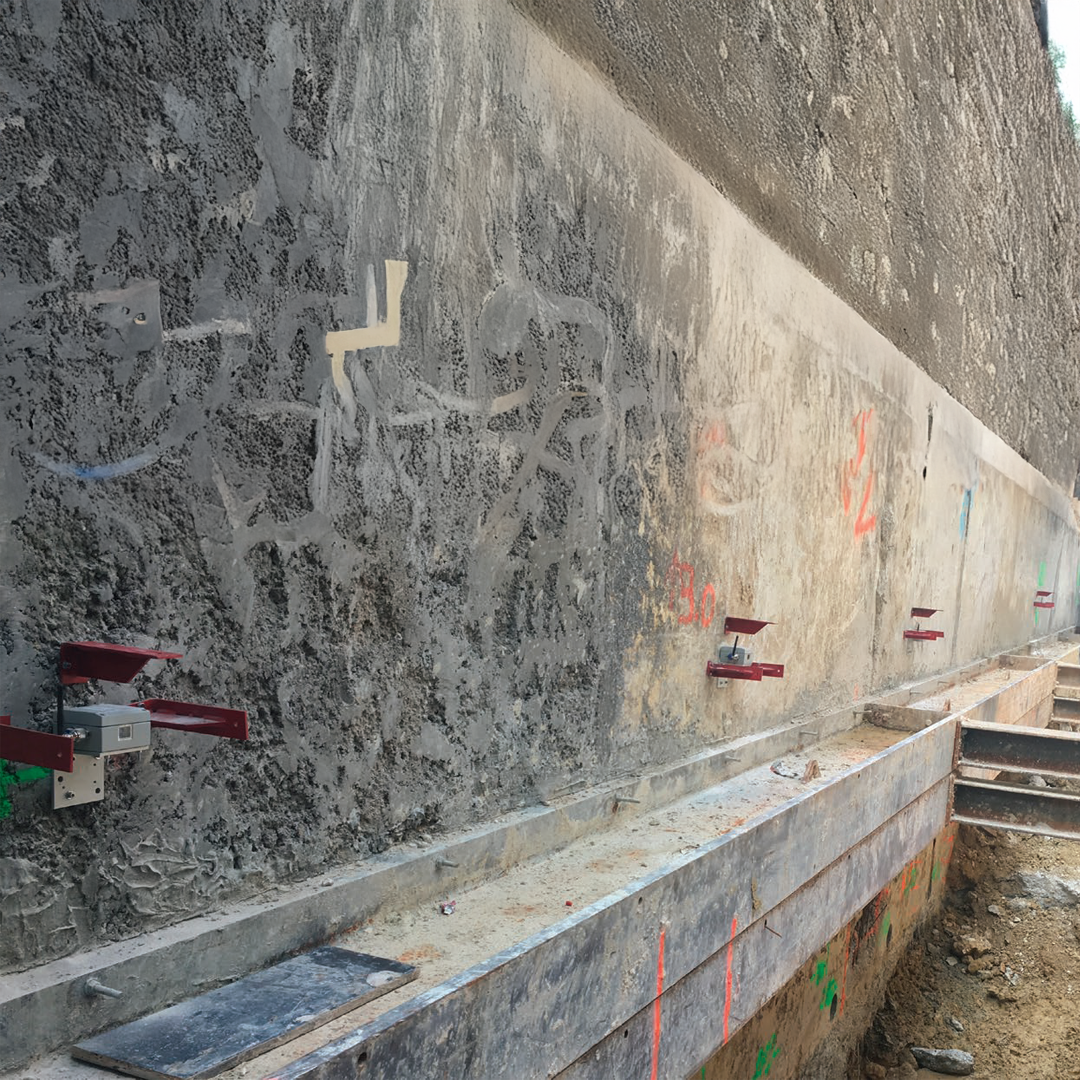

Monitor inclinations, movements and differential settlement required for excavation stability analysis, tunnel convergence and building displacement monitoring.
Automated & wireless
The wireless tiltmeter provides automated angular change of a structure for movement and settlement alarming and reporting.
Tilt in 3 directions
Tiltmeters provide high-accuracy tri-axial readings, providing precise movement detection for structural health determination, excavation and shoring stability.

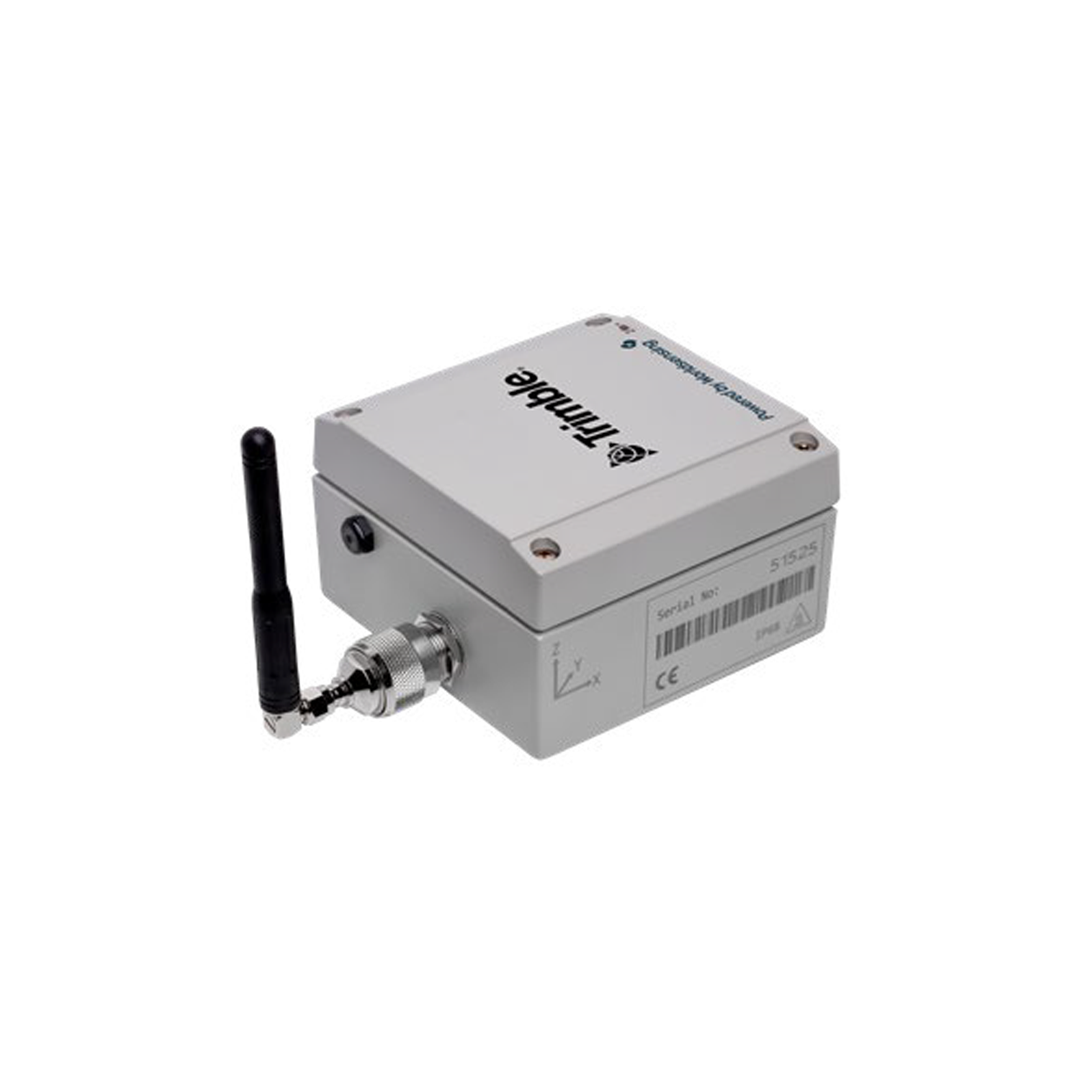

The Trimble Tilt90 is a 3-axis wireless tiltmeter designed to provide measurements of changes from the vertical level, either on the ground or in structures. This makes them key sensors to monitor inclinations, movements and differential settlements of slopes or infrastructures.
• Integrated geotechnical sensor: Combined sensor, radio and power
- Long-range communications: Up to 15 km (9 miles)
- Long battery life: > 10 years @ 1 hour frequency rate
- High sample rate and precision: Up to 30 sec rate and sub mm precision
- Robust, small and weatherproof: IP68 and operates -40 ⁰C to 80 ⁰C
- Fast deployment and configuration: Simple setup using mobile app
