Trimble GEDO GX50
£POA
PRODUCT ENQUIRYLaser scanning system for kinematic clearance analysis & asset data collection applications

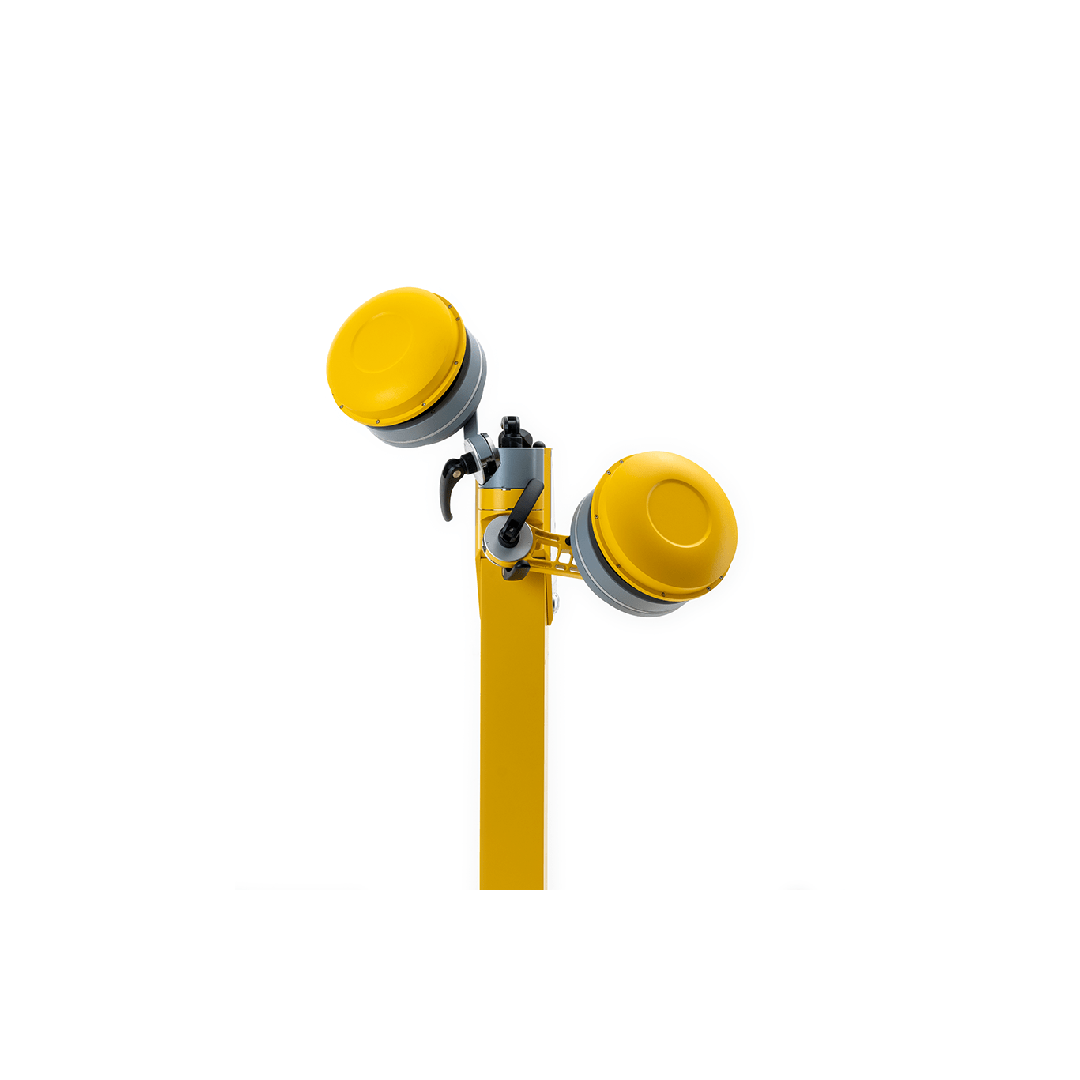

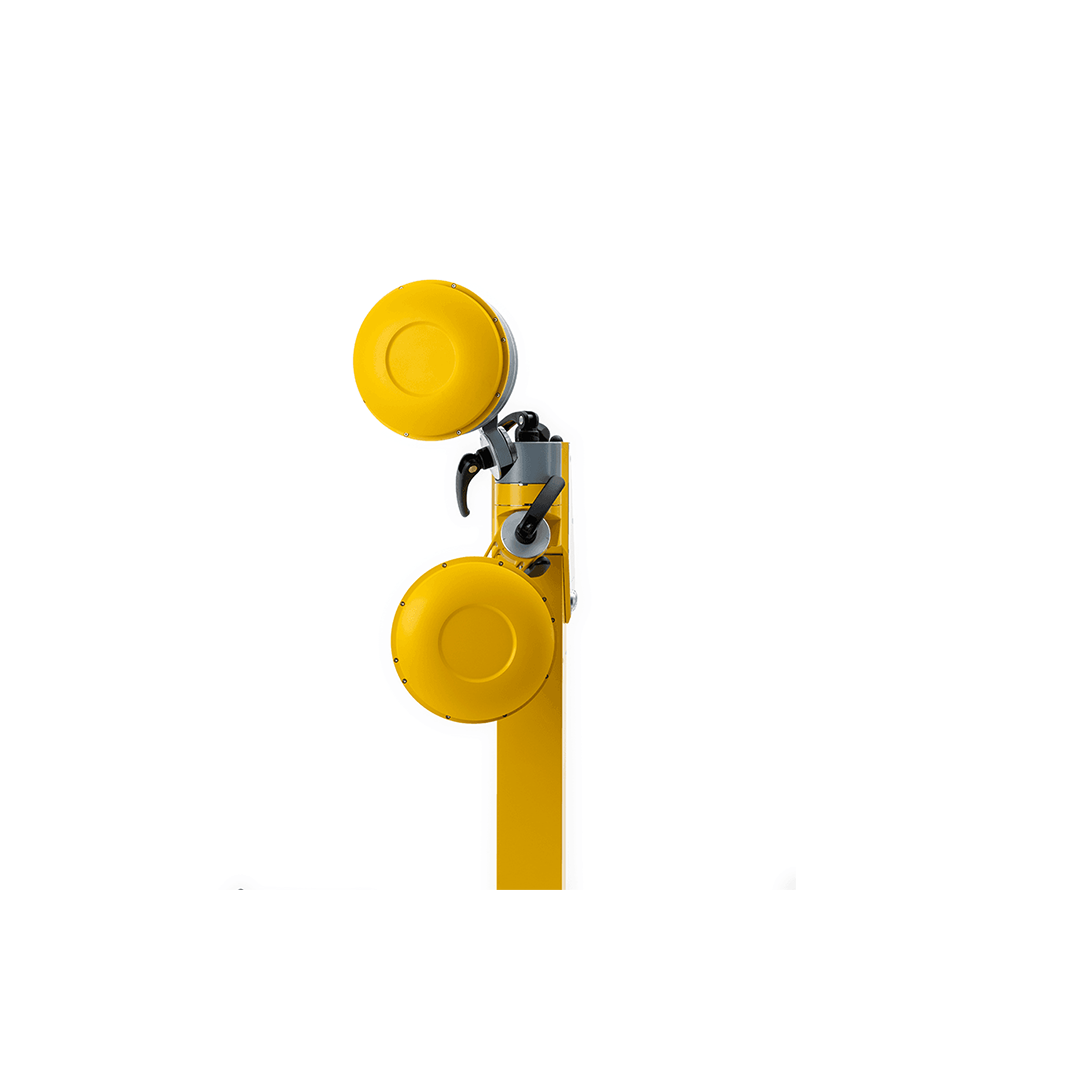

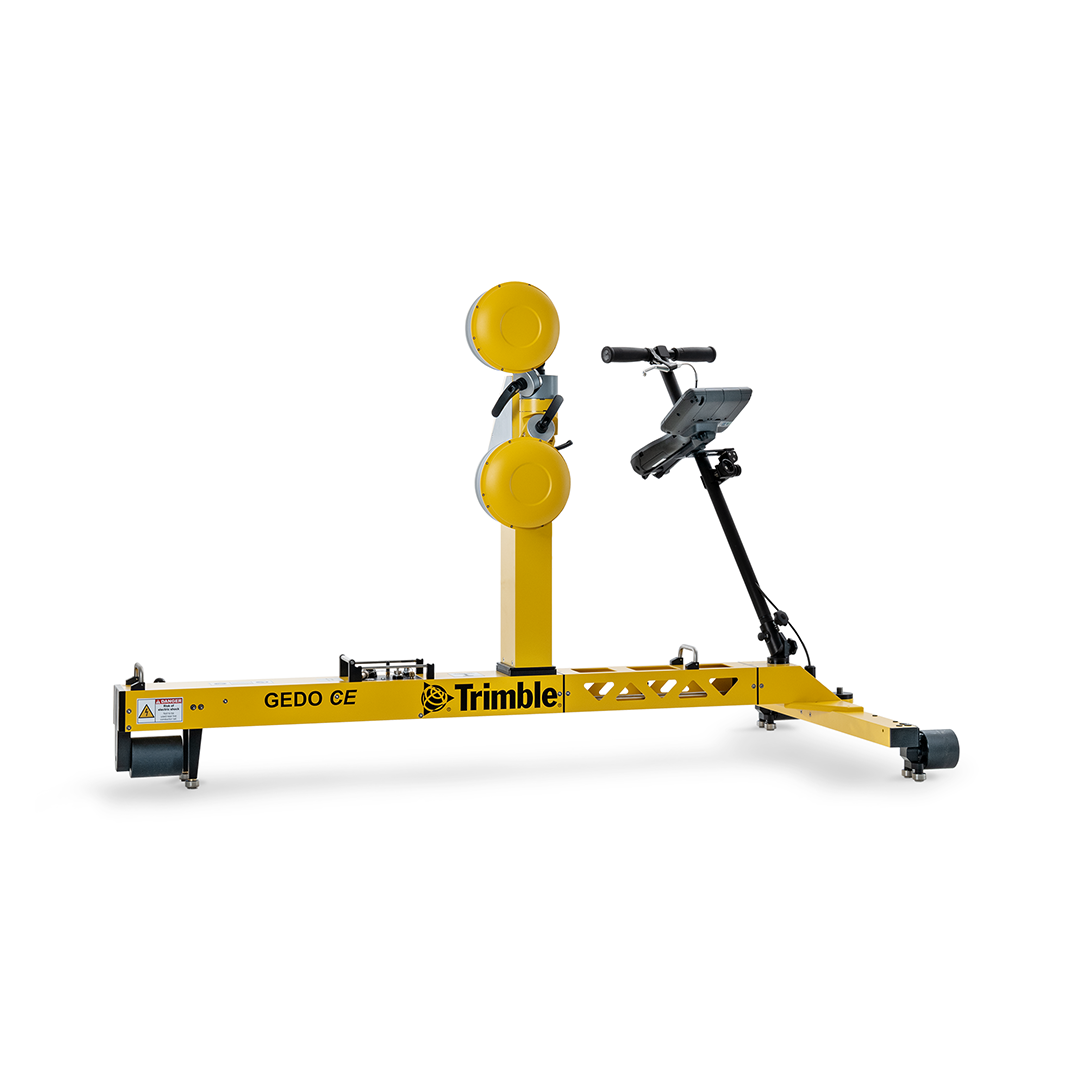

A modern and flexible laser scanning system that is designed to operate with Trimble GEDO track measurement systems, the Trimble GEDO GX50 is available in a Single Head configuration with one scanner and in a dual head configuration with two scanners and able to scan at 80° for better asset collection. The modular system design allows the second scanner to be added later. Depending on application specific requirements, the scanners can be mounted in different positions and tilt angles. The scanner positioned perpendicular to the track axis provides an optimum of accuracy for high precision clearance analysis. In the butterfly configuration, objects that are perpendicular to the track become clearly visible.
The high-resolution three-dimensional data obtained with the system quickly and precisely can be used for clearance verification and as-built data collection. In terms of accuracy and resolution, the data provides an excellent basis for modelling in a BIM-compliant design and construction workflow.
Multiple applications
Including planning, BIM and Construction, Operation & Maintenance, Asset Management and many more.
Scan options
Can be used with single or dual head scanners and a flexible alignment of scanners for optimal visibility of objects.
Save time
High measuring frequency and rotation rate allows for fast trolley movement during recording.
Live display
High-resolution live display for immediate on-site clearance checks
The high-resolution three-dimensional data, obtained quickly and precisely, can be used for clearance analysis and as-built data collection. In terms of accuracy and point density, the data provides an excellent basis for modelling in a BIM-compliant planning and construction process. Applications include as-built of existing railway lines / main line and siding tracks, connecting tracks, tramways, underground railways, and industrial tracks / clearance analysis / data acquisition for routing and modelling purposes.
• Structure: Single Head / Dual Head; 90° or 80°
- Scanner maximum range: 80m
- Scanner Accuracy / Precision: 2 mm / 2.5 mm @ 30 m
- Scanner Measuring rate: 500 kHz / 1 MHz
- Scanning speed: 120 Hz / 240 Hz
- Scanner field of view: 345° / 360°
- System accuracy: Lateral distance: < 5 mm / height difference (at 5 m object distance): < 7 mm
- Power supply: • Standard Trimble S-Series Lithium-Ion Batteries with operating time approx. 4.5 h for Single Head / approx. 3 h for Dual Head
