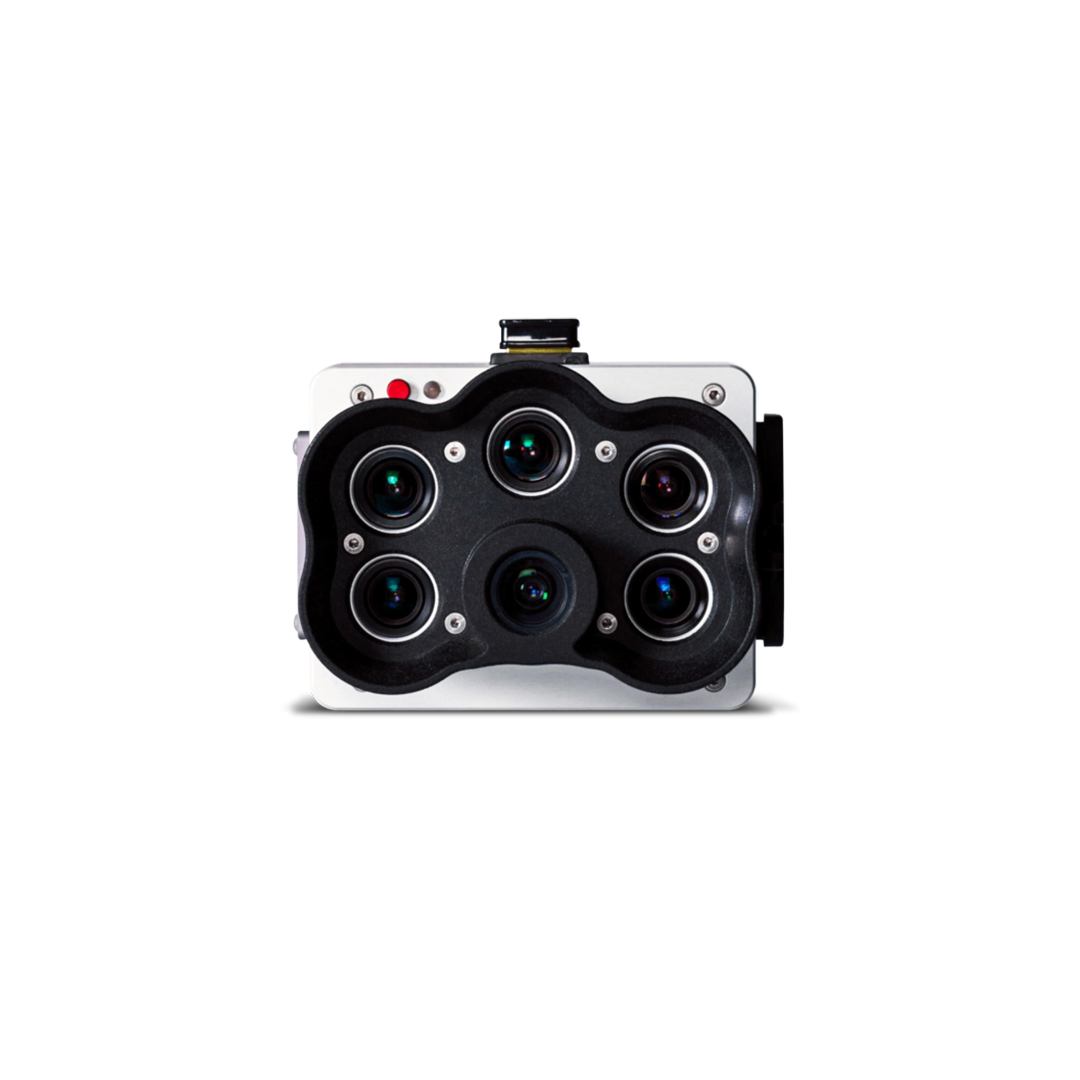

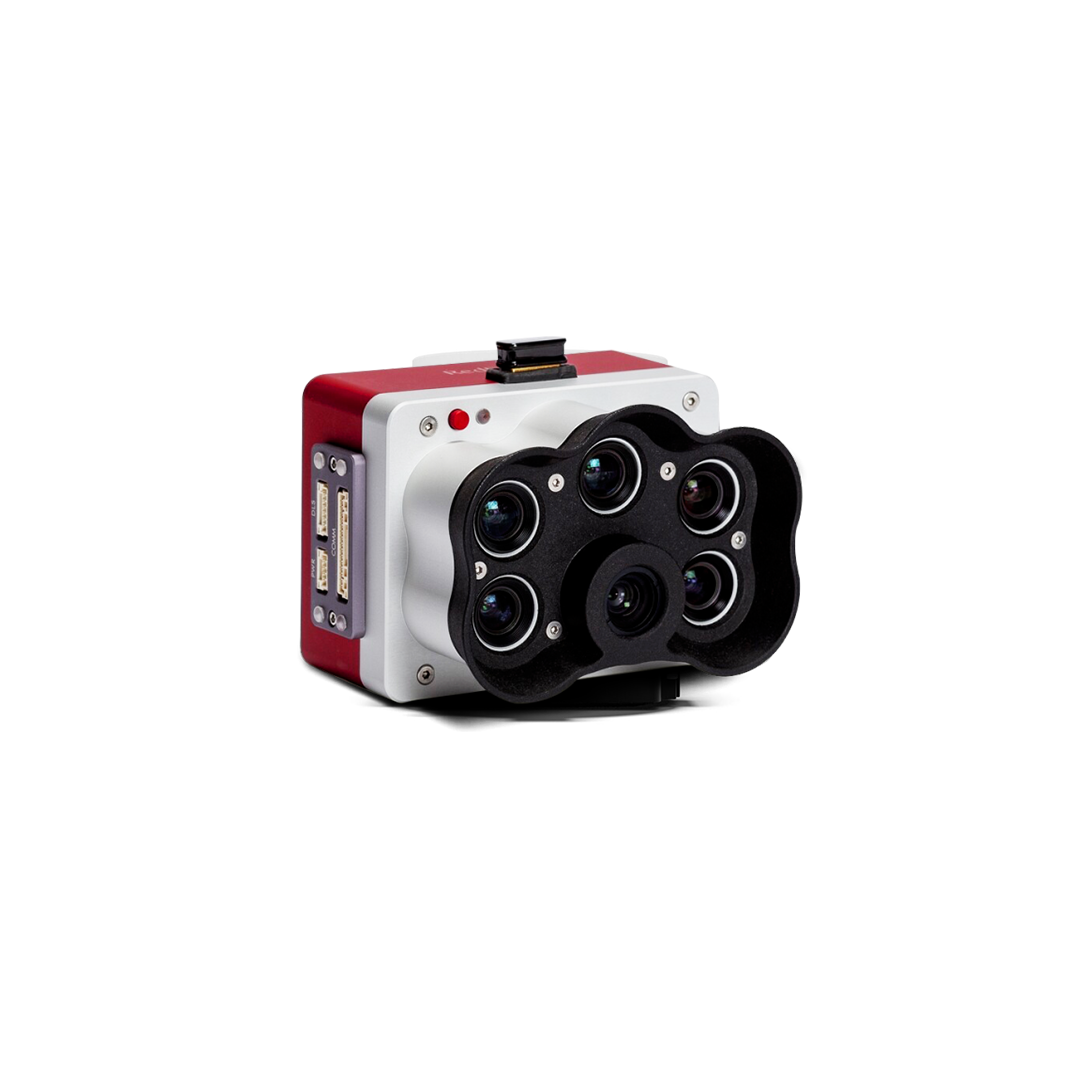

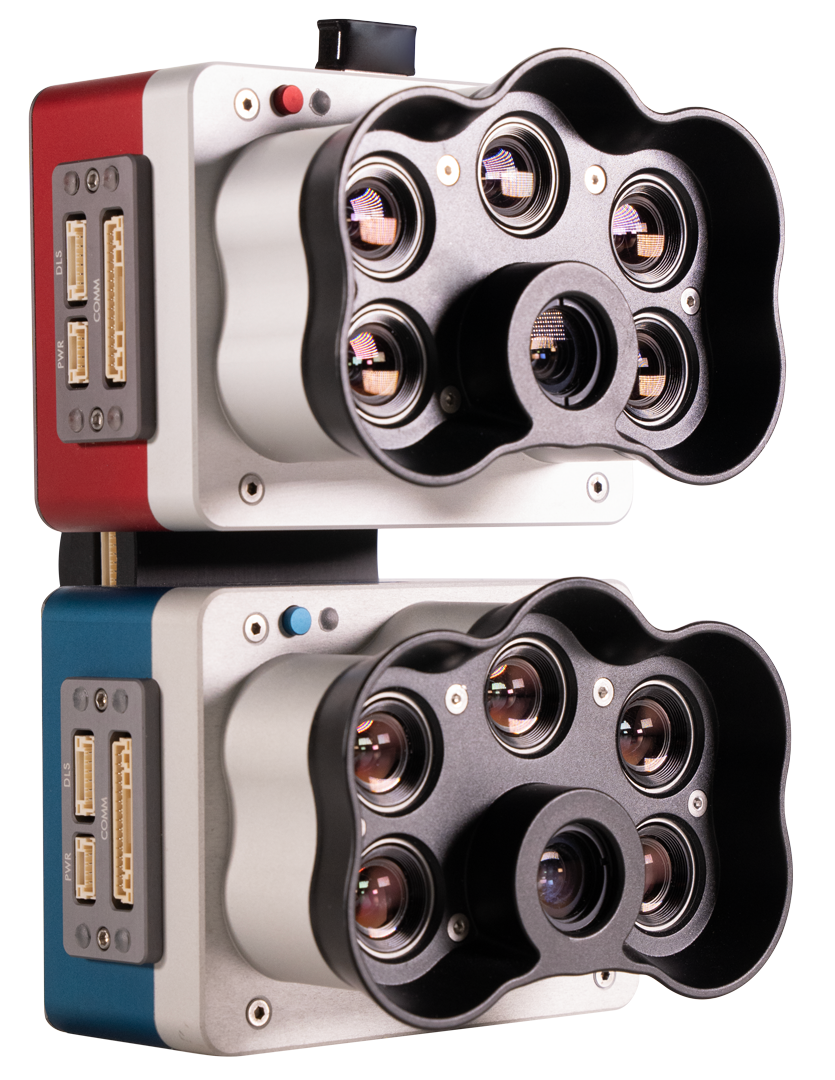

The MicaSense RedEdge Panchromatic (RE-P) combines a panchromatic sensor with five narrow bands to produce high-resolution multispectral and RGB from one flight for advanced analytics. It is ideal for applications such as precision agriculture and environmental research bringing major boosts in accuracy, efficiency and cost-effectiveness.
Unprecedented resolution
Its pansharpened resolution—down to 2 cm (0.8 in) flying at 60 m (197 ft)—is twice that of RedEdge-MX. This new level of precision is thanks to both a 5.1 MP panchromatic sensor and a three frame per second image capture rate.
Optimised for plant-level detail

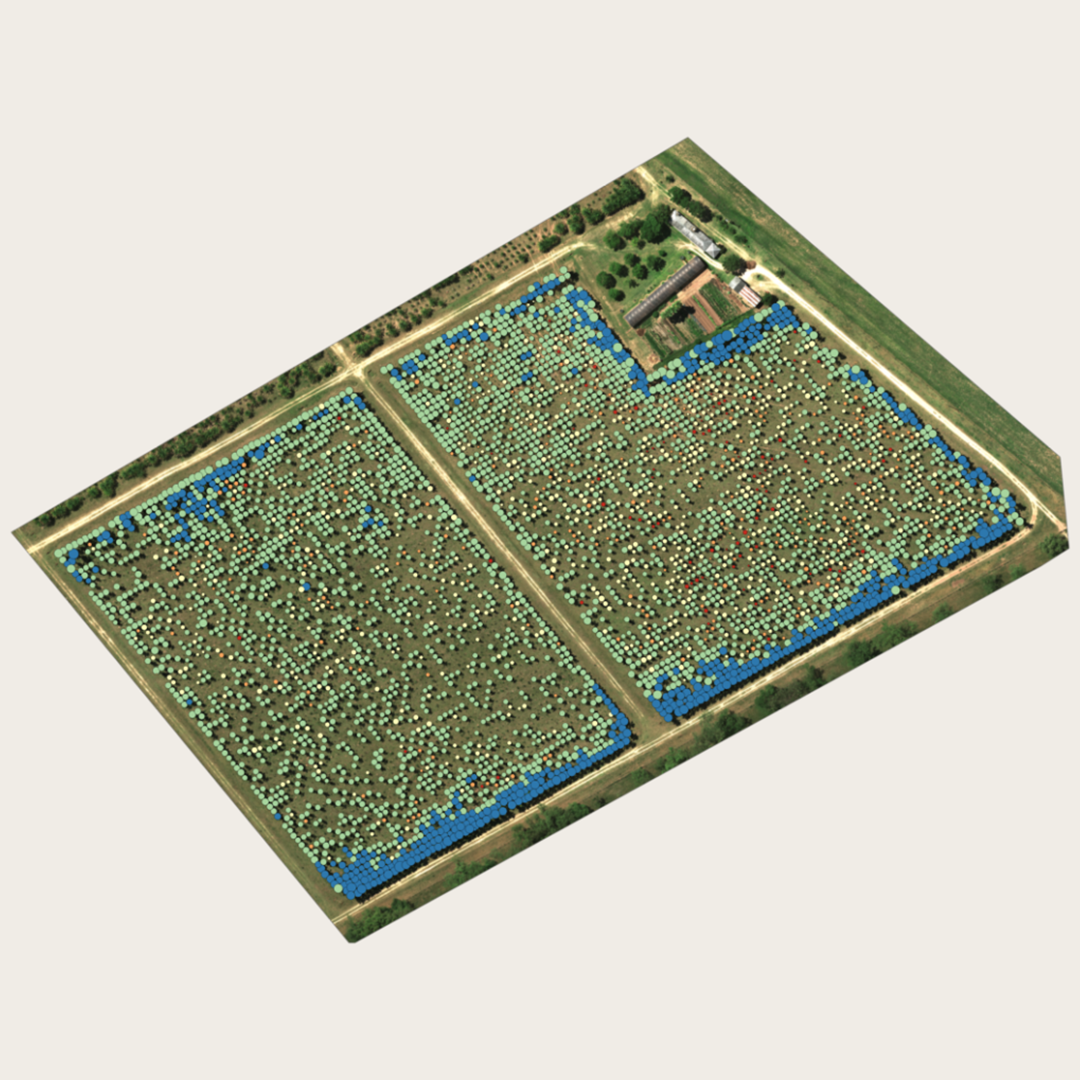

High resolution enables applications that require plant-level detail, such as plant counting and species identification. This delivers solutions across industries like environmental monitoring and research.
Highest efficiency

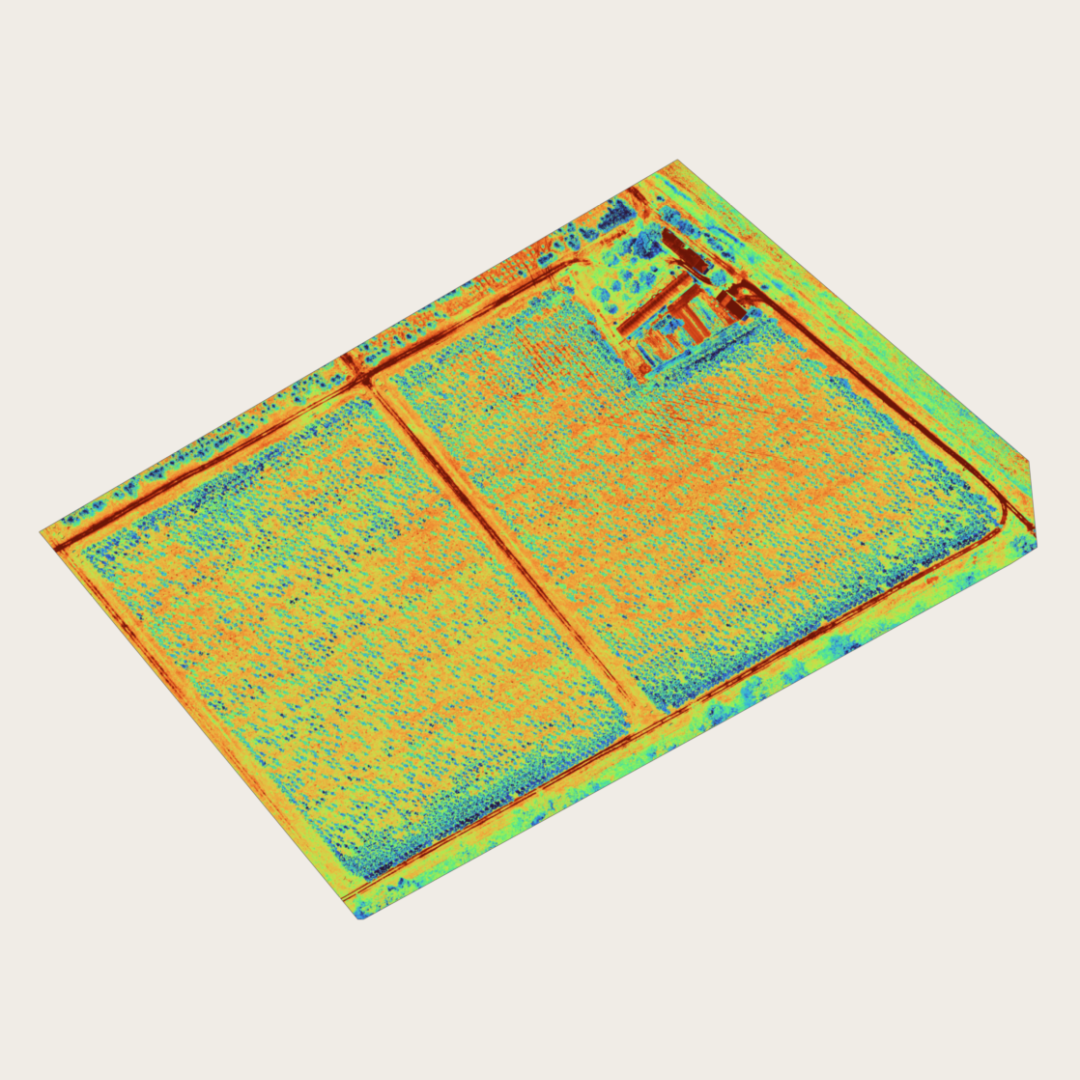

The RE-P pushes the limits for multispectral mapping by having a faster capture rate enabling lower flights than before, even at high speed.Every flight delivers reliable, high- resolution images across all bands. RGB composites as well as vegetation indices can now be gathered in the shortest time.
Combine with Wingtra drones
The combination of Wingtra drones and RE-P is the best solution for mapping large areas, even in harsh conditions. Wind robustness means reliable maps, and PPK gives you high-accuracy repeatable data capture that you can overlap to detect changes in vegetation.
Key technical specifications include 6 multispectral bands
Red, Green, Blue, Rededge, Near-infrared, Panchromatic (10.3 mm lens
• Multispectral sensor: 5 bands – blue, green, red edge, near infrared (NIR)
- Panchromatic sensor: 1 high-resolution single band
- Coverage at lowest GSD: 90 ha at 60m altitude
- Lowest possible GSD: 2cm/px multispectral
- Absolute horizontal accuracy down to 3cm without GCPs
- Coverage at 120m: 180 ha at 4cm/px GSD
