Trimble MX60

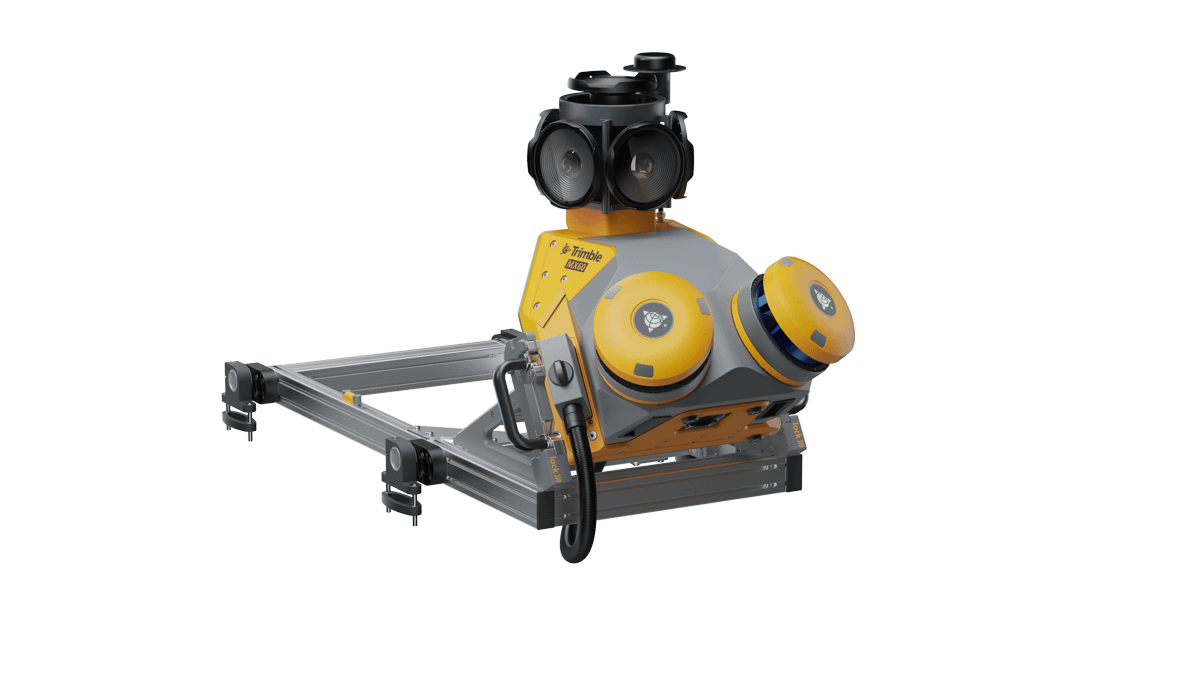

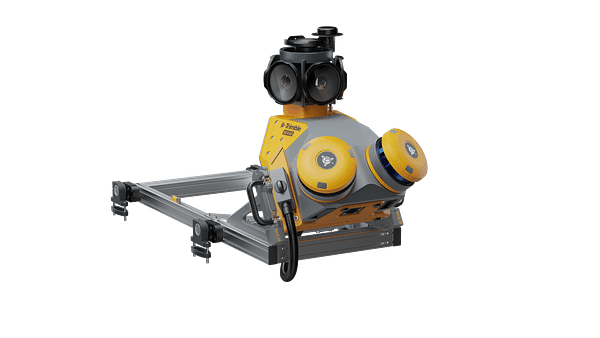

MX60 Mobile Mapping System

A flexible system – Core, Pro or Premium – with a downward facing camera, that makes advanced mobile mapping technology more accessible to more users in more industries.

The Trimble MX60 is the latest addition to the Trimble mobile mapping portfolio, bringing significant advancements over the MX50 and making it an ideal tool for a number of applications including road analysis work and comprehensive asset management for utilities.

With the new MX60, expect enhanced positioning, optics, and a downward-facing camera—ideal for road analysis and asset management. Additionally, the MX60’s intuitive field software and powerful office tools enable a seamless field-to-finish workflow.

It’s also easy to install and integrate into Trimble’s ecosystem for easy project sharing whilst supporting digital twins and BIM for higher-quality data and deliverables.

Three different configurations ensure that it meets the diverse needs of any project:

1. MX60 Core is perfect for those getting started with mobile mapping, for example on paving projects, and those who need to tag and manage assets

1. MX60 Pro is ideal for road analysis, including identifying minute details such as cracks in road surfaces
2. MX60 Premium is for enhanced positioning, perfect for mapping in dense urban centres to examine road conditions, as well as all of the above

Key features include:

• Weight – Up to 28kg
• Improved range – up to 150m
• IP rating – Sensor unit IP64
• Spherical camera – Up to 72MP (6 X 12 MP)
• Laser effective measurement rate – Up to 1000kHz
• Scan speed – Up to 400 scans/sec
• Embedded Trimble GNSS-inertial system – Trimble InFusion+ with ProPoint engine
